Cable Tray Covers

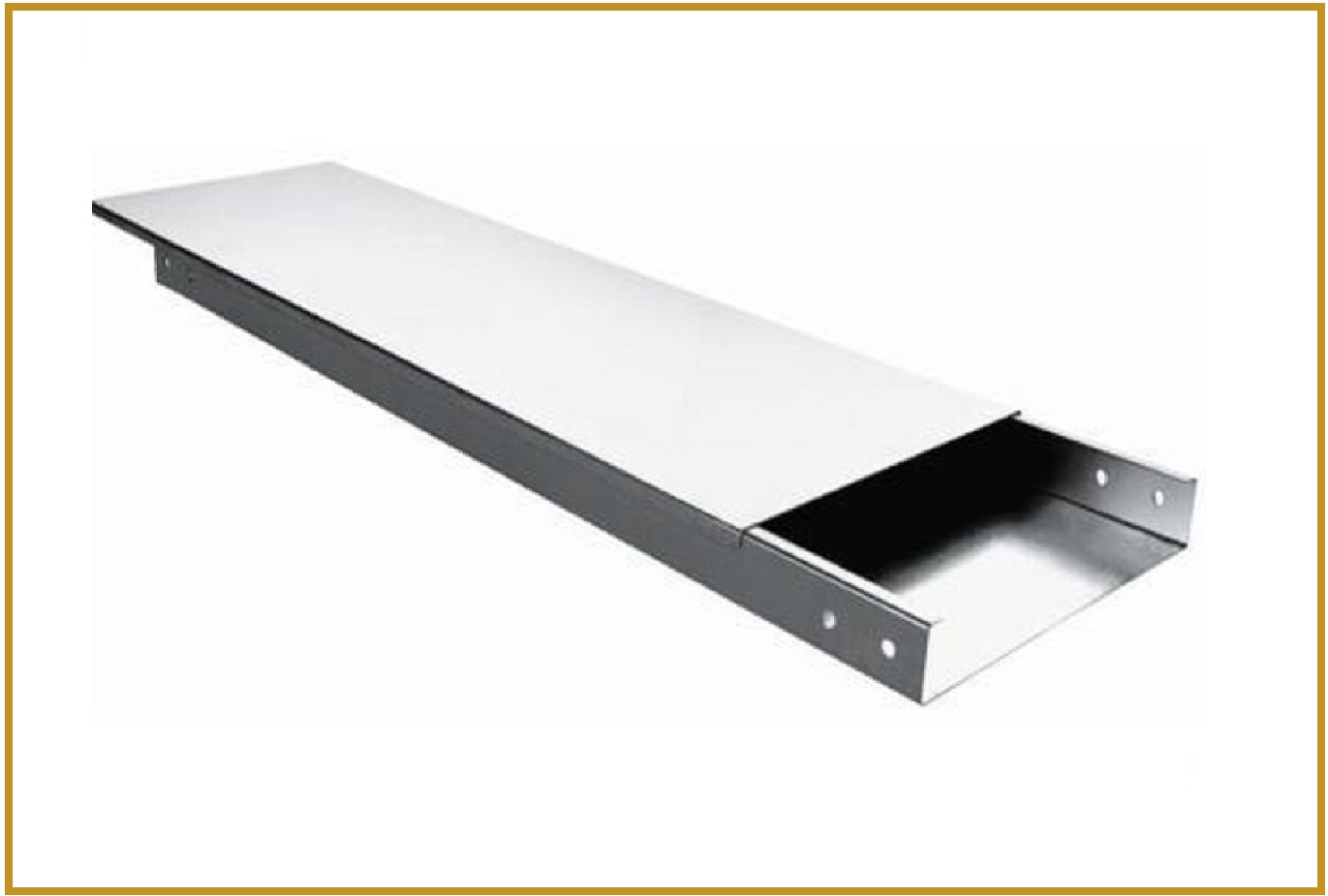

Cable Tray Covers

Cable Tray Covers are designed to provide effective protection to cables against dust, moisture, and mechanical damage while allowing convenient access for inspection and maintenance. These covers are available in a variety of materials, finishes, and thicknesses to suit specific installation and environmental requirements.

Manufactured using high-quality materials such as mild steel, stainless steel, aluminum, and galvanized steel, the covers are available in a variety of finishes including powder coating, hot-dip galvanization, and epoxy coating to ensure durability and corrosion resistance.

Cable Tray Covers are offered in various thicknesses, widths, and lengths to match the corresponding tray designs — including perforated, ladder, wire mesh, and raceway types. Their snap-on, bolted, or hinged designs facilitate easy installation and quick access during maintenance.

Straight Section

Covers act as an additional safeguard, providing shelter from sunlight dirt accumulation and accidental contact. They also isolate cables from fires and radio frequency interference. Available in sold top ar louvered top.

Standard Dimensions

Length (L): 2,500mm & 3,000mm
Depth (D): 15mm
Width (W): 100mm, 150mm, 200mm, 300mm, 450mm, 600mm, 750mm, 900mm

Sheet Metal Thickness:
1.2mm (Light), 1.5mm (Medium), 2.0mm (Heavy)

Material & Finish

Material: Prime Quality GI & MS Sheets
Finish (after fabrication):
Electro Powder Coating (E)
Pre-Galvanised (P)
Hot Dip Galvanized (H)

Designs other than those listed above can be manufactured to meet special requirements.

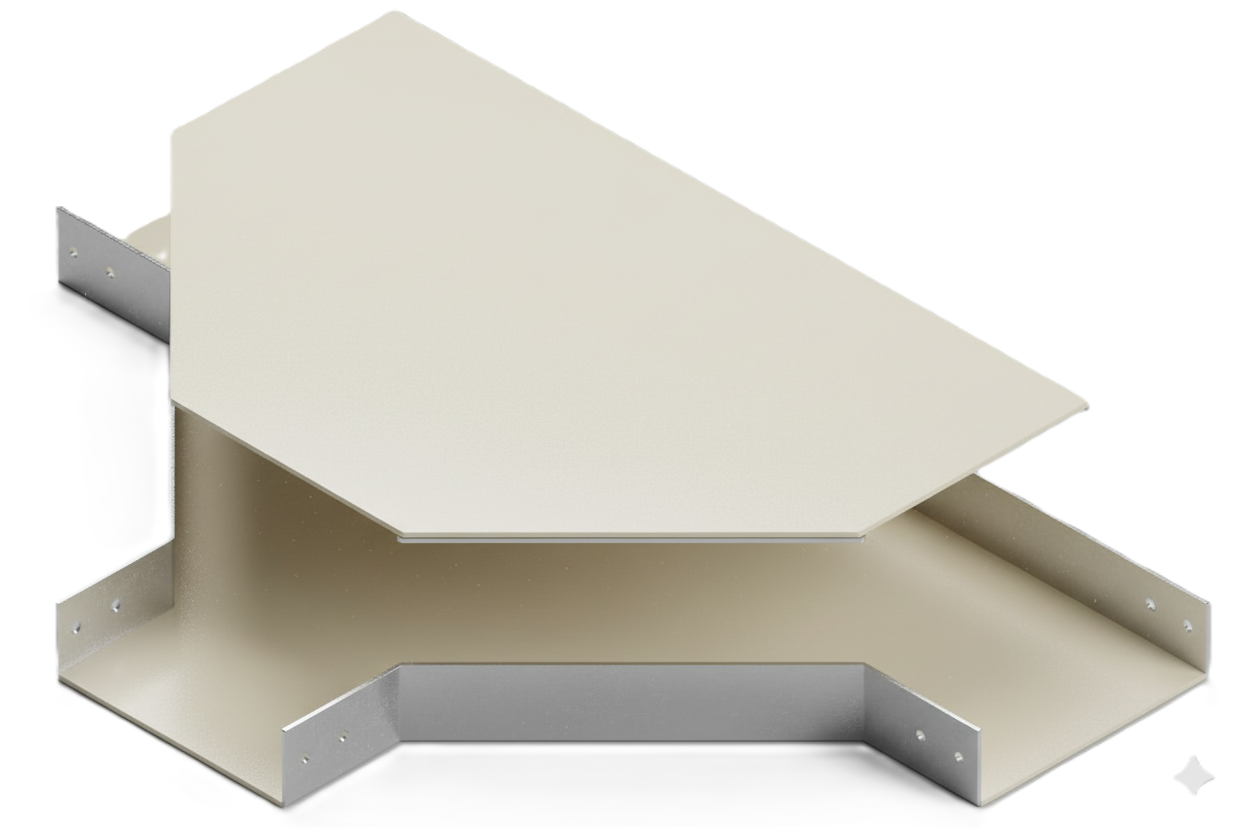

Horizontal Tee Cable Tray Cover

Horizontal Tee

Standard Dimensions

Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250, 1400, 1550mm
Breadth (B): 500, 550, 700, 850, 1000, 1150mm

For other dimensions please Contact Us.

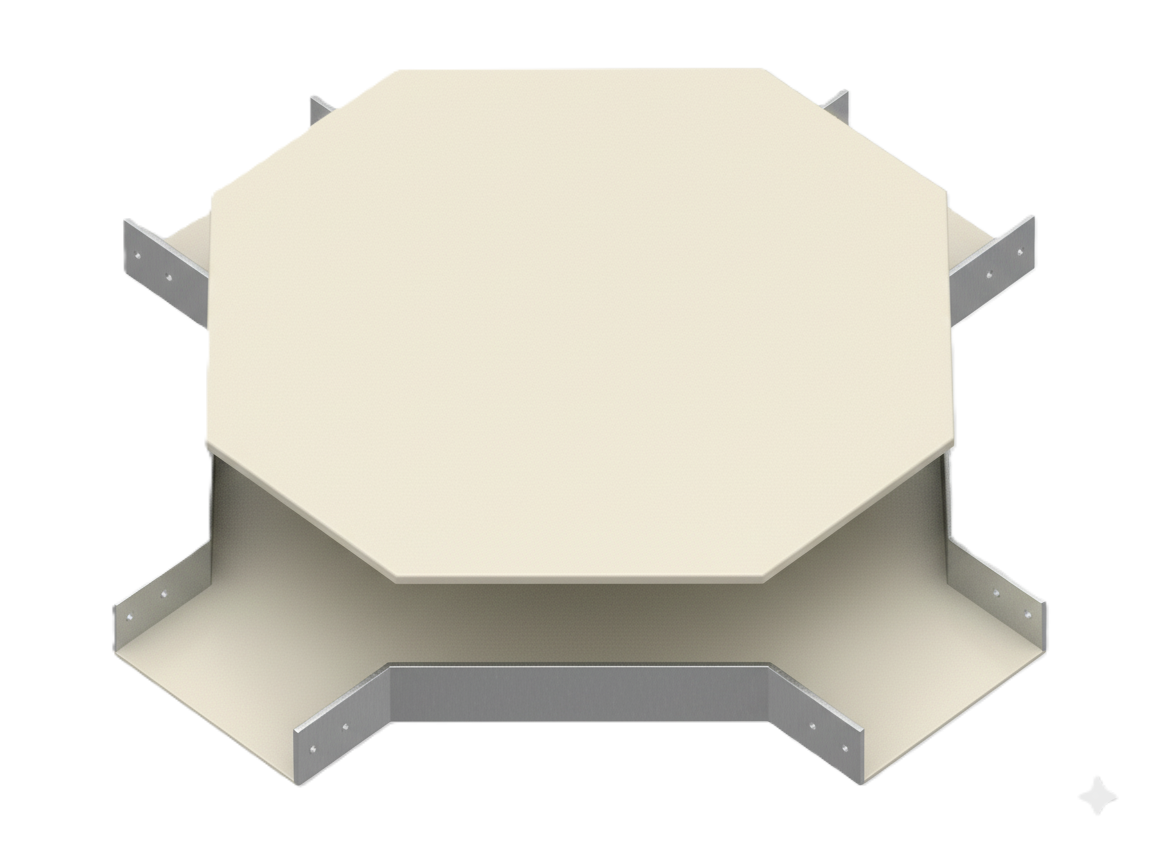

Horizontal Cross Cable Tray Cover

Horizontal Cross

Standard Dimensions

Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250, 1400, 1550mm

For other dimensions please Contact Us.

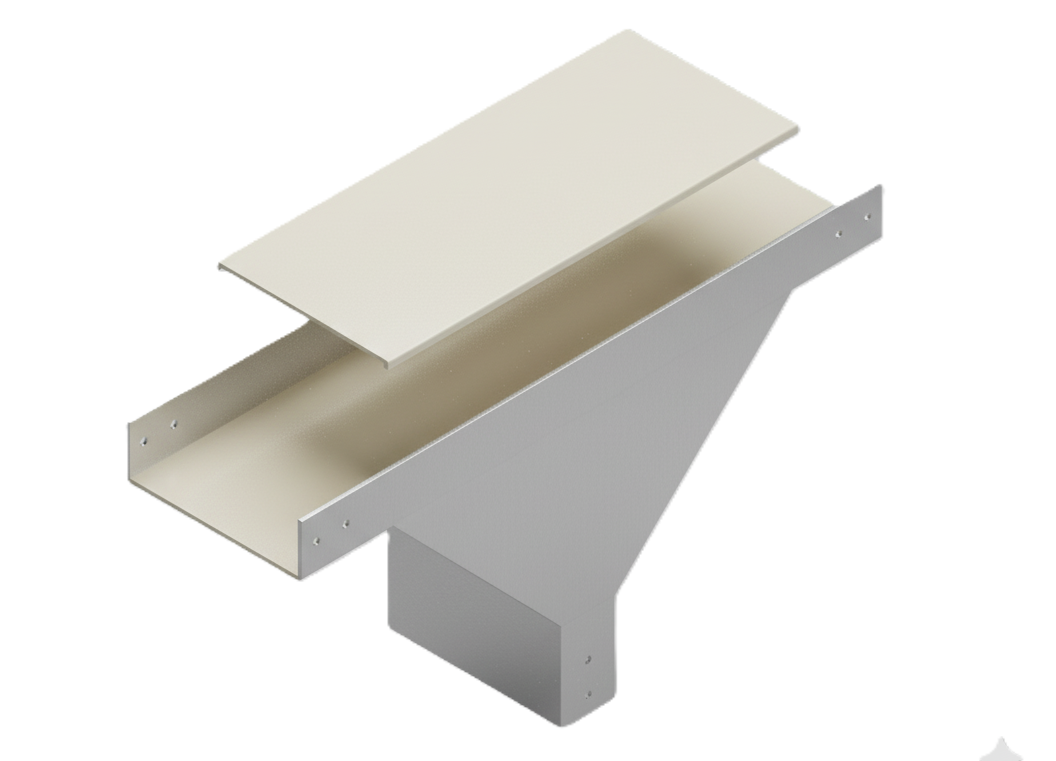

Vertical Tee Cable Tray Cover

Vertical Tee

Standard Dimensions

Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250, 1400, 1550mm
Breadth (B): 500, 550, 700, 850, 1000, 1150mm

For other dimensions please Contact Us.

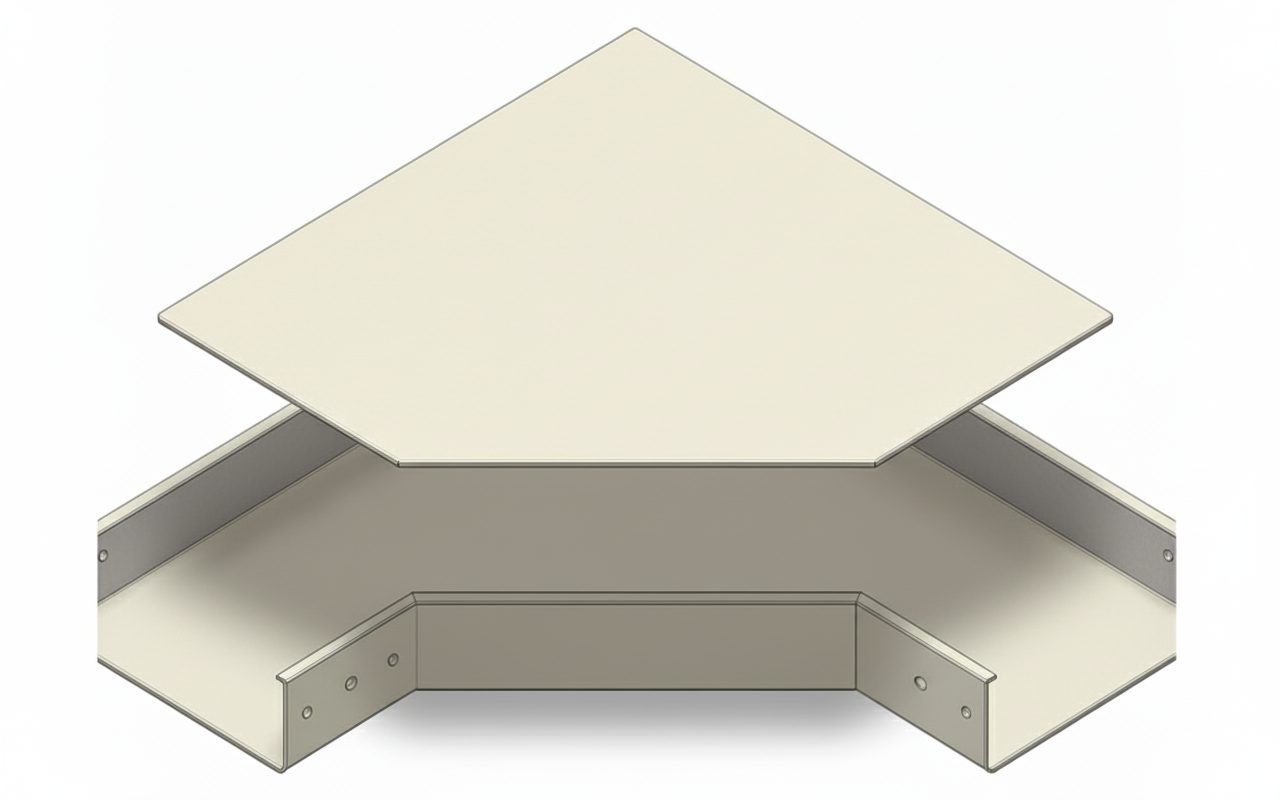

Horizontal Elbow Cable Tray Cover

Horizontal Elbow

Standard Dimensions

Radius (R): 300mm
Bend Angle: 90° (30°, 45°, and 60° also available)
Width (W): 100, 150, 300, 450, 600, 750mm
Length (L): 500, 550, 700, 850, 1000, 1550mm
Breadth (B): 500, 550, 700, 850, 1000, 1150mm

For other dimensions please Contact Us.

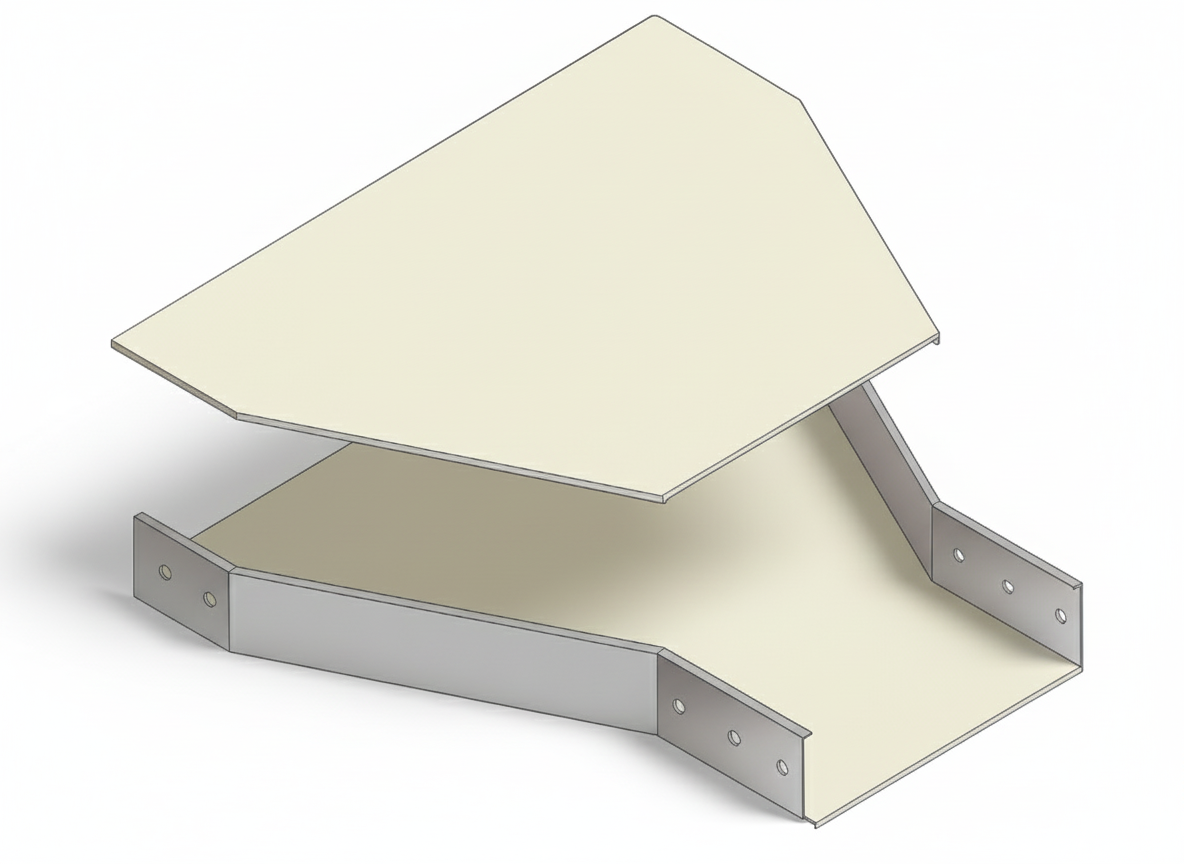

Reducer Cable Tray Cover

Reducer

Left Hand & Right Hand Reducer

BNY offers a complete range of perforated bottom reducers for joining any two sizes of straight sections. Please specify both starting and ending widths.

Vertical Riser Cable Tray Cover

Inside & Outside Vertical Risers

Standard Dimensions

Bend Angle: 90°
Used for vertical upward or downward cable transitions.

For other dimensions please Contact Us.

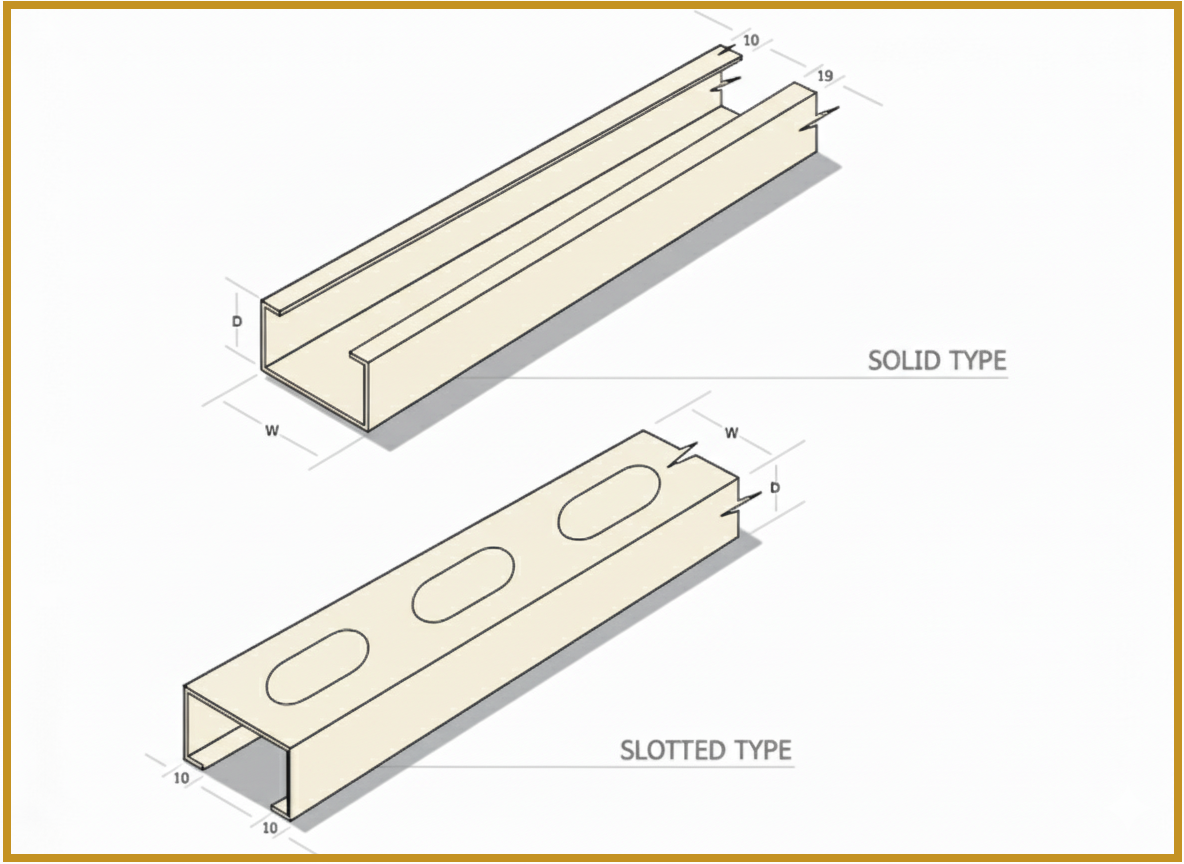

Channel

Channel

Channels are available in solid bottom and slotted type, providing strong and reliable support for electrical cables and other installations. Designed for versatility and durability, these channels ensure safe cable management in industrial, commercial, and infrastructure applications.

Manufactured using high-quality mild steel and galvanized iron (GI) sheets, the channels offer excellent resistance against corrosion and mechanical wear. They are available in a range of finishes and thicknesses to meet specific installation requirements.

Types of Cable Tray Accessories:

  • Horizontal Bend / Elbow: Allows smooth 90° turns in the horizontal plane.
  • Vertical Bend (Inside / Outside): Facilitates elevation changes in the vertical direction.
  • Tee / Cross Junction: Enables branching of cables in multiple directions.
  • Reducers (Left / Right / Center): Used for transitioning between trays of different widths.
  • Coupler Plates & Clamps: Ensure secure jointing between tray sections.
  • Supports & Brackets: Provide mechanical stability and maintain proper cable alignment.
  • End Plates & Covers: Offer protection at open tray ends and prevent cable exposure.

Features & Benefits:

  • Ensures complete and reliable cable routing
  • Available in multiple materials and surface finishes
  • Corrosion-resistant and long-lasting
  • Easy to install and maintain
  • Custom sizes and configurations available

Standard Dimensions

Length (L): 2,500mm & 3,000mm
Depth (D): 42mm
Width (W): 42mm
Sheet Metal Thickness: 2.5mm

Material

Prime quality GI & MS sheets.

Finish (after fabrication)

Electro Powder Coating (E)
Pre-Galvanised (P)
Hot Dip Galvanised (H)
