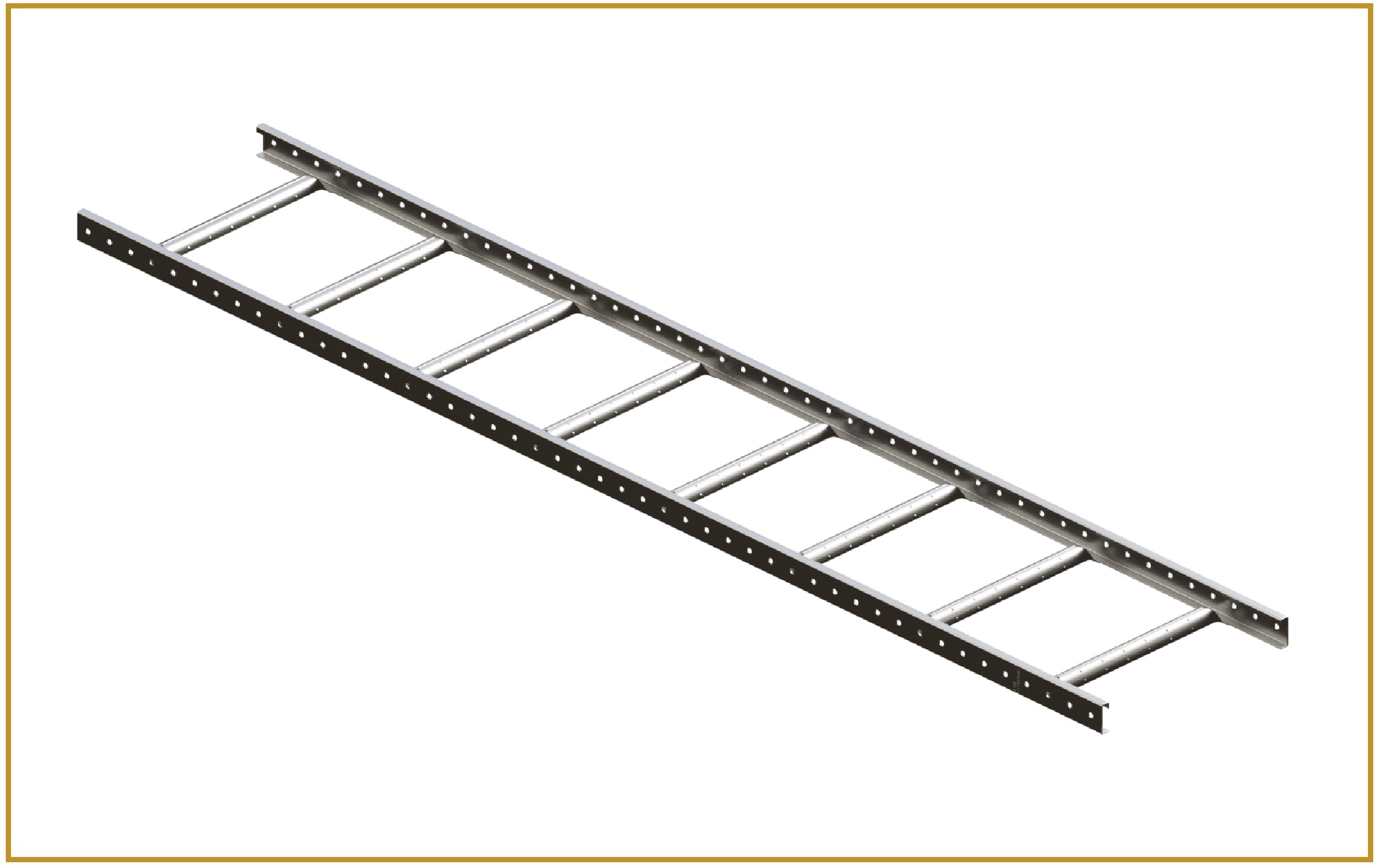

Ladder Cable Tray
Straight sections of ladder type cable trays consist of two longitudinal side rails, connected by individual transverse members, or rungs, which are welded to the side rails or bolted in case of GI trays. This type of cable tray provides maximum ventilation to heat-producing power cables.
Straight Section
Standard Dimensions
Length (L): 2,500mm & 3,000mm
Depth (D): 50mm, 75mm, 85mm, 100mm, 150mm
Width (W): 100mm, 150mm, 200mm, 300mm, 450mm, 600mm, 750mm,
900mm
Rung Spacing: 300mm
Sheet Metal Thickness:
1.2mm for light loads (LL)
1.5mm for medium loads (M)
2.0mm for heavy loads (H)
Material & Finish
Material: Prime quality G.I. & M.S. sheets.
Finish (after fabrication):
Electro powder coating (E)
Pre-galvanised (P)
Hot dip galvanized (H)
Designs other than those listed above can be manufactured to meet special requirements.

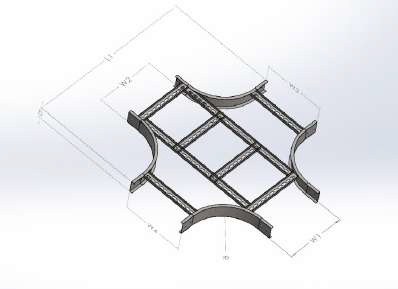

Horizontal Cross
Standard Dimensions
Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750, 900mm
Length (L): 900, 950, 1100, 1250, 1400, 1550, 1700mm
Breadth (B): 850, 1000, 1150, 1300mm

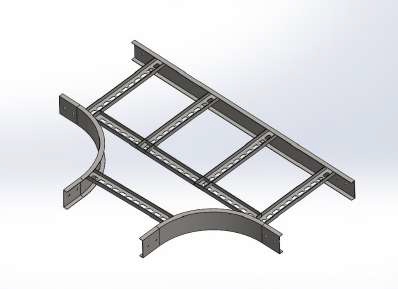

Horizontal Tee
Standard Dimensions
Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250, 1400, 1550mm
Breadth (B): 500, 550, 700mm
For other dimensions please Contact Us.

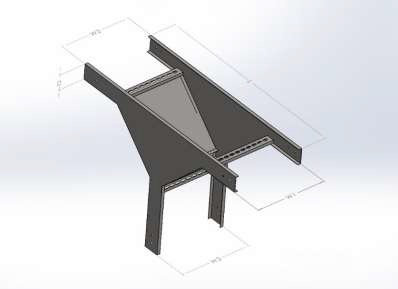

Vertical Tee
Standard Dimensions
Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750, 900mm
Length (L): 900, 950, 1100, 1250, 1400, 1550, 1700mm
Breadth (B): 500, 550, 700, 850, 1000, 1150, 1300mm
For other dimensions please Contact Us.

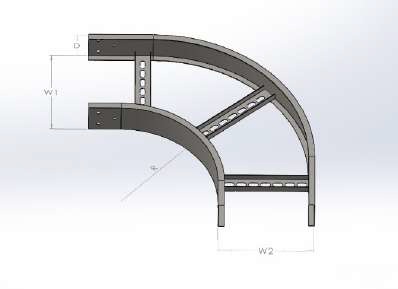

Horizontal Elbow
Standard Dimensions
Radius (R): 300mm
Bend Angle: 90° (30°, 45°, & 60° also available)
Width (W): 100, 150, 300, 450, 600, 750, 900mm
Length (L): 500, 550, 700, 850, 1000, 1300, 1550mm
Breadth (B): 500, 550, 700, 850, 1000, 1150, 1300mm
For other dimensions please Contact Us.

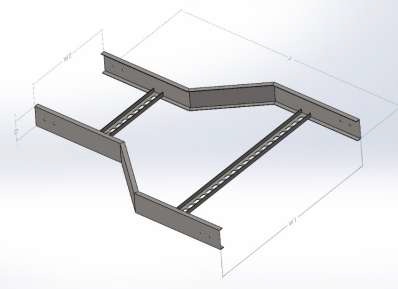

Reducer
Left Hand Reducer & Right Hand Reducer
BNY offers a complete range of perforated bottom reducers for joining any two sizes of straight sections. Please specify both starting and ending widths.

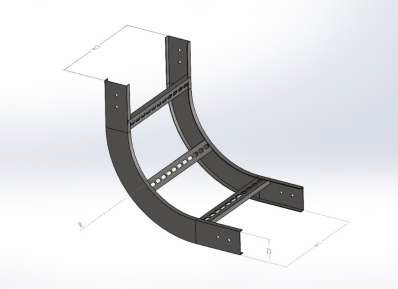

Inside & Outside Vertical Risers
Standard Dimensions
Bend Angle: 90°
For other dimensions please Contact
Us.
