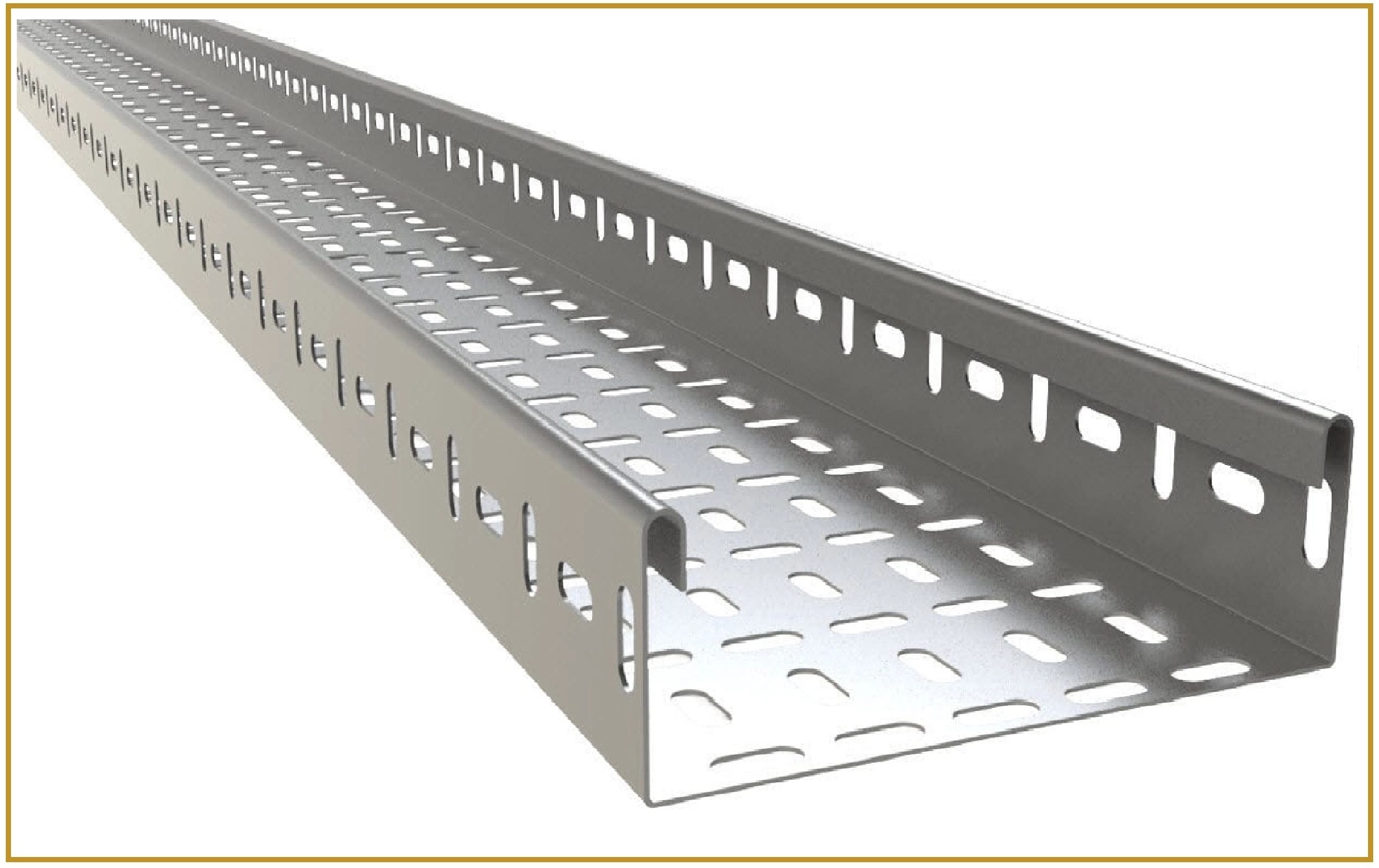

GI Cable Trays
GI (Galvanized Iron) Cable Trays are widely used for efficient cable management in industrial and commercial installations. These trays are manufactured using premium-quality galvanized iron sheets to provide excellent corrosion resistance, durability, and electrical safety. GI Cable Trays are ideal for carrying power, data, and communication cables in structured and safe routing systems.
Straight Section
Standard Dimensions
Length (L): 2,500mm & 3,000mm
Depth (D): 50mm, 75mm, 85mm, 100mm, 150mm
Width (W): 100mm, 150mm, 200mm, 300mm, 450mm, 600mm, 700mm
Sheet Metal Thickness:
1.2mm for light loads (LL)
1.5mm for medium loads (M)
2.0mm for heavy loads (H)
Material
Material: Prime quality G.I. & M.S. sheets.
Finish (after fabrication):
Electro powder coating (E)
Pre-galvanised (P)
Hot dip galvanized (H)
Designs other than those listed above can be manufactured to meet special requirements.
Horizontal Cross
Standard Dimensions
Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250, 1400, 1550mm
Breadth (B): 500, 550, 700, 850, 1000, 1150mm
Horizontal Tee
Standard Dimensions
Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250, 1400, 1550mm
For other dimensions please Contact Us
Vertical Tee
Standard Dimensions
Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250, 1400, 1550mm
Breadth (B): 500, 550, 700, 850, 1000, 1150mm
For other dimensions please Contact Us
Horizontal Elbow
Standard Dimensions
Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250, 1400, 1550mm
Breadth (B): 500, 550, 700, 850, 1000, 1150mm
For other dimensions please Contact Us
Reducer
Left Hand Reducer
Right Hand Reducer
BNY offers a complete range of perforated bottom reducers for joining any two sizes of straight sections. Please specify both starting and ending widths.
Risers
Inside & Outside Vertical Risers
Standard Dimensions
Bend Angle: 90°
