Painted Cable Trays
Painted Cable Trays are widely used for indoor and light industrial applications where an aesthetic finish and moderate corrosion protection are required. These trays are fabricated from high-quality mild steel and painted using premium-grade industrial paints for a smooth, long-lasting surface finish.
They offer an economical yet durable solution for managing electrical, instrumentation, and communication cables, making them ideal for commercial buildings, offices, and control rooms.
Straight Section
Standard Dimensions
Length (L): 2,500mm & 3,000mm
Depth (D): 50mm, 75mm, 100mm, 150mm
Width (W): 100mm, 150mm, 200mm, 300mm, 450mm, 600mm, 750mm
Sheet Thickness: 1.2mm, 1.6mm, 2.0mm
Load Capacity: Light, Medium, and Heavy Duty
Material & Finish
Material: Mild Steel (M.S.)
Finish: Painted with synthetic enamel or epoxy paint
Color: As per customer requirement (Standard: Light Grey RAL
7035)
The paint coating enhances resistance to oxidation, moisture, and minor abrasion while improving appearance.
Horizontal Tee
Standard Dimensions
Width (W): 100, 150, 200, 300, 450, 600mm
Length (L): 900, 950, 1100, 1250mm
Provides a 90° branch in the cable layout while maintaining uniform strength and painted finish. For custom dimensions please Contact Us.

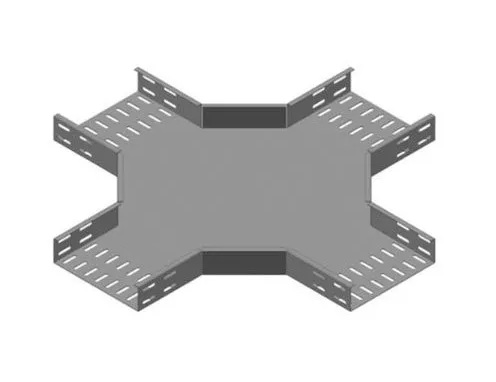

Horizontal Cross
Standard Dimensions
Width (W): 100, 150, 200, 300, 450, 600mm
Length (L): 900, 950, 1100, 1250mm
Used to create four-way cable routing intersections while retaining paint finish consistency across the tray system.
For other sizes please Contact Us.

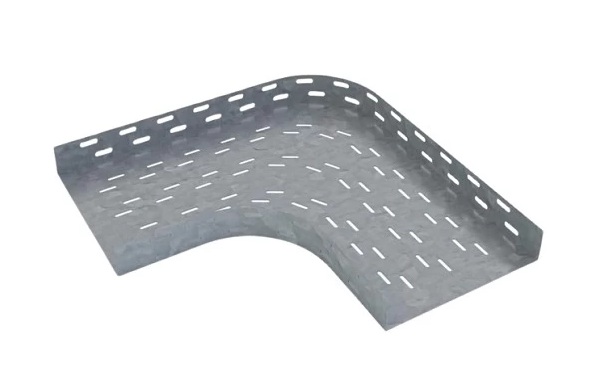

Horizontal Elbow
Standard Dimensions
Bend Angle: 90° (also available in 30°, 45°, 60°)
Width (W): 100, 150, 200, 300, 450, 600, 750mm
Allows directional changes with a uniform, durable painted coating for protection and aesthetics.

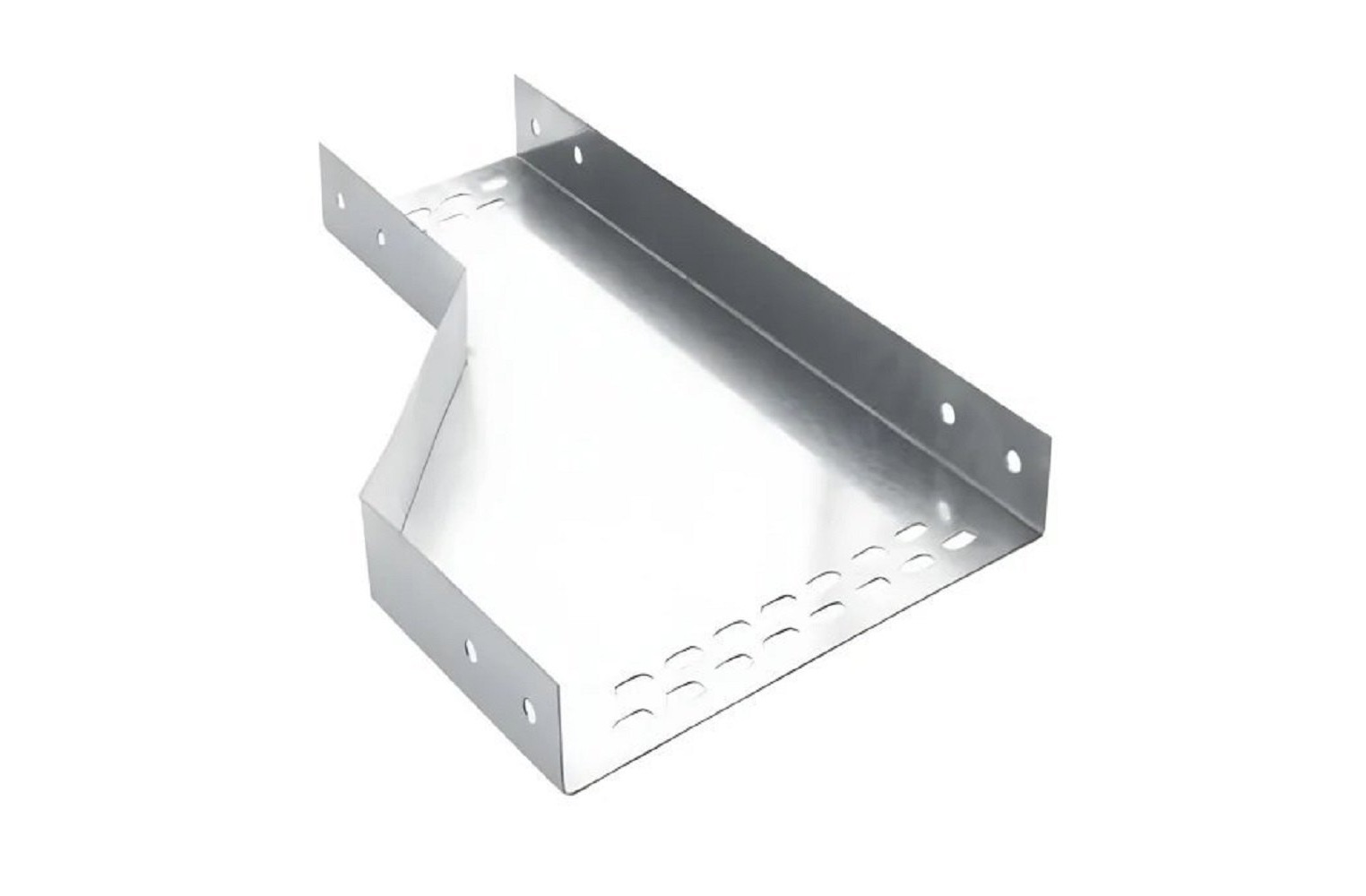

Reducer
Left Hand & Right Hand Reducer
Reducers are used to transition between trays of varying widths. Painted finish ensures visual uniformity and rust protection across all components.

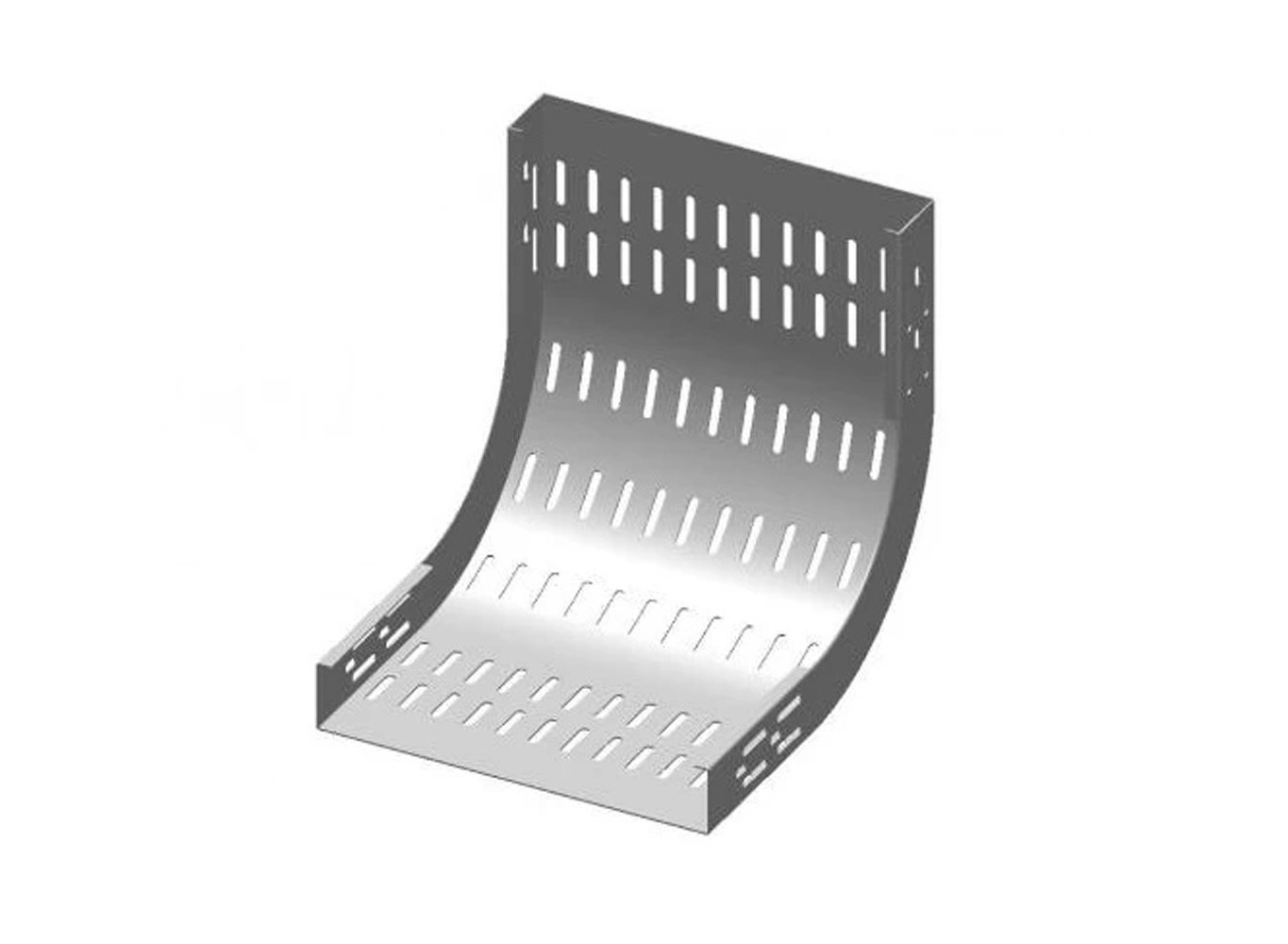

Vertical Risers
Standard Dimensions
Bend Angle: 90° (also available in 30°, 45°, 60°)
Used for upward and downward cable transitions, maintaining paint integrity and
smooth cable passage.
For other sizes please Contact Us.
