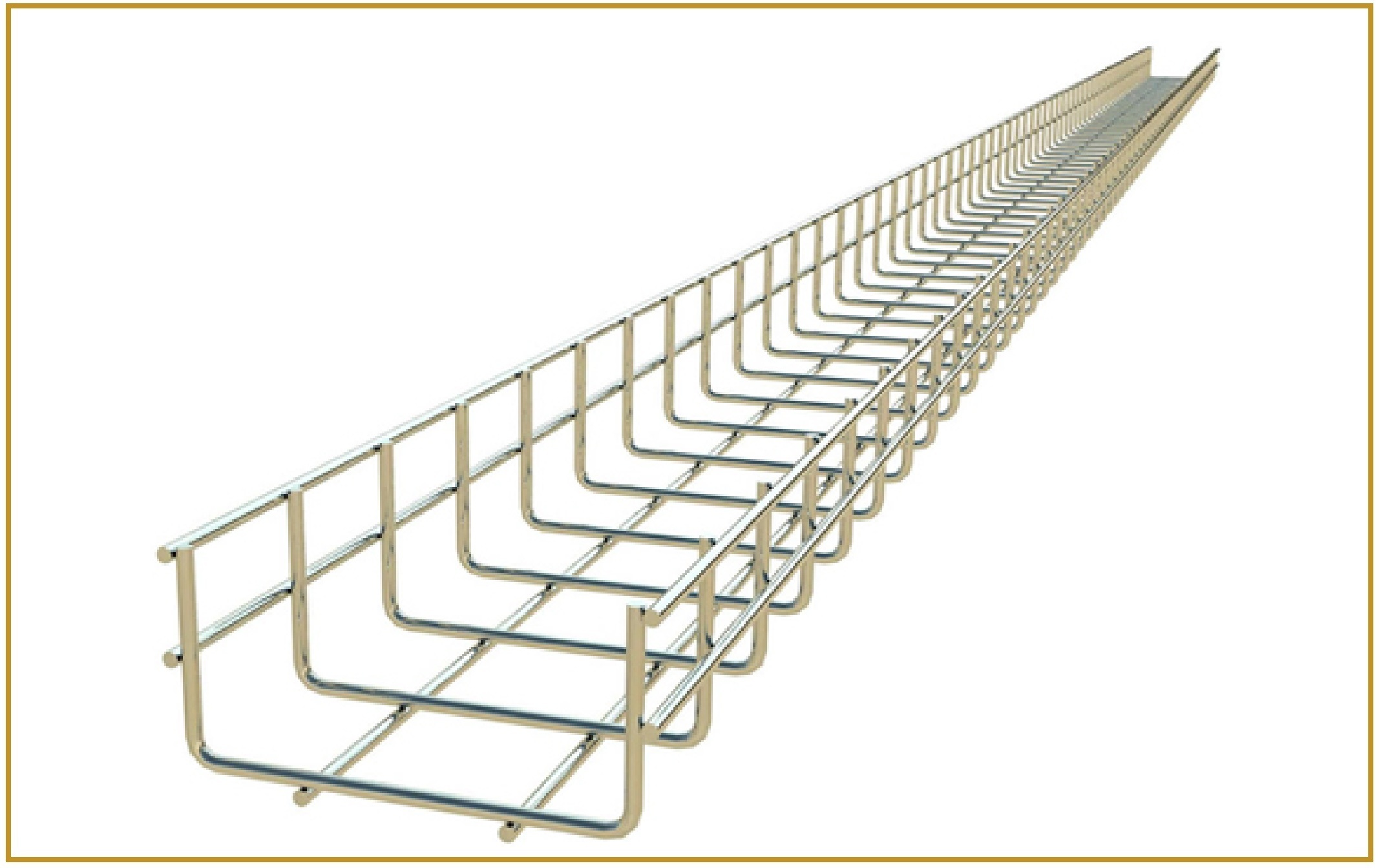

Wire Mesh Cable Trays
Wire Mesh Cable Trays are designed for routing and supporting small diameter cables such as data, communication, and fiber optic cables. Their open structure provides excellent ventilation, reduces heat build-up, and makes installation and maintenance simple and efficient.
Straight Section
Standard Dimensions
Length (L): 2,500mm & 3,000mm
Depth (D): 25mm, 50mm, 75mm, 100mm
Width (W): 50mm, 100mm, 150mm, 200mm, 300mm, 450mm, 600mm
Wire Diameter: 4mm, 5mm, 6mm
Mesh Size: 50mm x 100mm or customized as required
Material & Finish
Material: Mild Steel, Stainless Steel (SS304 / SS316).
Finish:
Electro Galvanized (EG)
Hot Dip Galvanized (HDG)
Powder Coated (PC)
Stainless Steel (SS Finish)
Custom designs and sizes can be manufactured as per specific project requirements.
Horizontal Tee
Standard Dimensions
Width (W): 100, 150, 200, 300, 450, 600mm
Length (L): 300, 450, 600, 750, 900mm
For other dimensions please Contact Us.

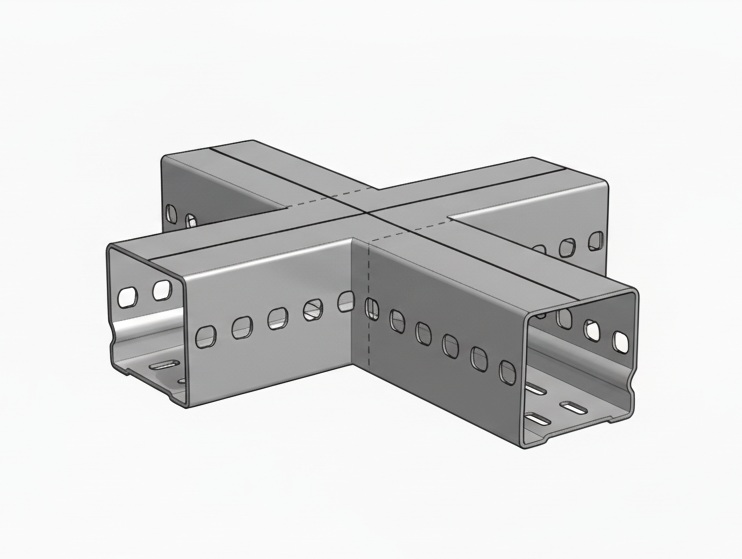

Horizontal Cross
Standard Dimensions
Width (W): 100, 150, 200, 300, 450, 600mm
Length (L): 300, 450, 600, 750, 900mm
For other dimensions please Contact Us.
Horizontal Elbow
Standard Dimensions
Bend Angle: 90° (also available in 30°, 45°, 60°)
Width (W): 100, 150, 200, 300, 450, 600mm
For other dimensions please Contact Us.

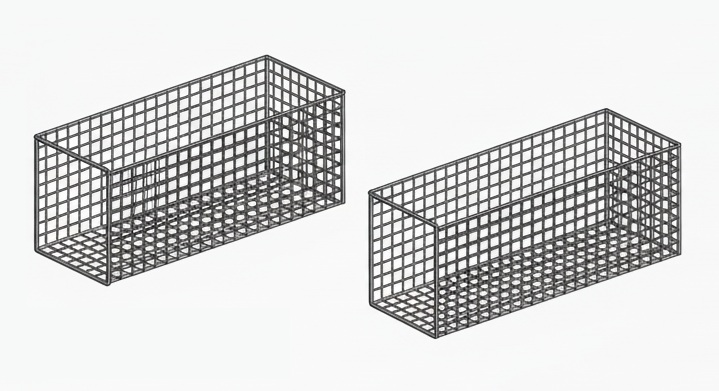

Reducer
Left Hand & Right Hand Reducer
Wire Mesh Reducers are designed to join two trays of different widths seamlessly while maintaining support and continuity of the cable path.

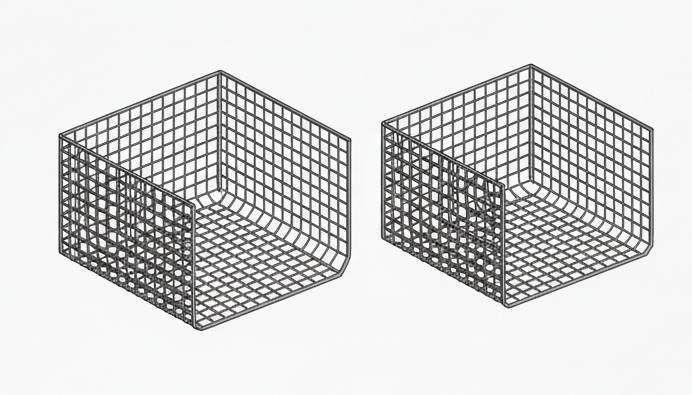

Vertical Risers
Standard Dimensions
Bend Angle: 90° (also available in 30°, 45°, 60°)
Used for upward or downward directional changes in wire mesh tray routing.
For other dimensions please Contact Us.
