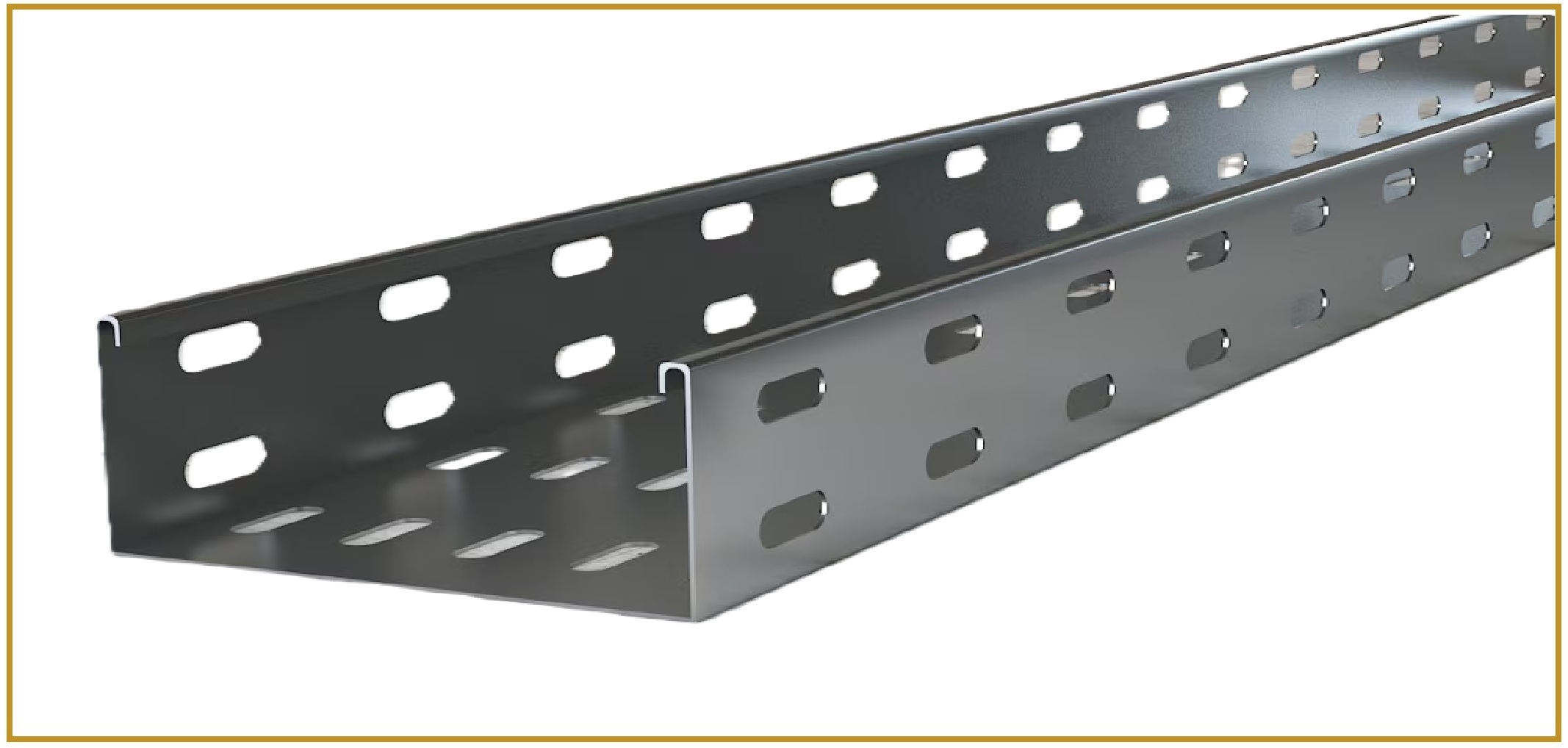

Hot Dip Galvanized Cable Trays
Hot Dip Galvanized Cable Trays are designed for long-term performance and high corrosion resistance in industrial and outdoor environments. These trays are fabricated from high-quality mild steel and undergo a hot dip galvanizing process that ensures complete zinc coating, providing excellent protection against rust and harsh weather conditions.
They are suitable for heavy-duty cable management in plants, refineries, power projects, and chemical industries where durability and corrosion protection are critical.
Straight Section
Standard Dimensions
Length (L): 2,500mm & 3,000mm
Depth (D): 50mm, 75mm, 100mm, 150mm
Width (W): 100mm, 150mm, 200mm, 300mm, 450mm, 600mm, 750mm
Sheet Thickness: 1.2mm, 1.6mm, 2.0mm, 2.5mm
Load Capacity: Light, Medium, and Heavy Duty
Material & Finish
Material: Mild Steel (M.S.)
Finish: Hot Dip Galvanized as per IS 2629 / IS 4759
Coating Thickness: 60–80 microns (custom coating available)
Hot dip galvanizing ensures full protection inside and outside the tray for maximum durability.
Horizontal Tee
Standard Dimensions
Width (W): 100, 150, 200, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250mm
Used to branch out the cable route at 90° angles with full galvanic protection. For custom sizes please Contact Us.

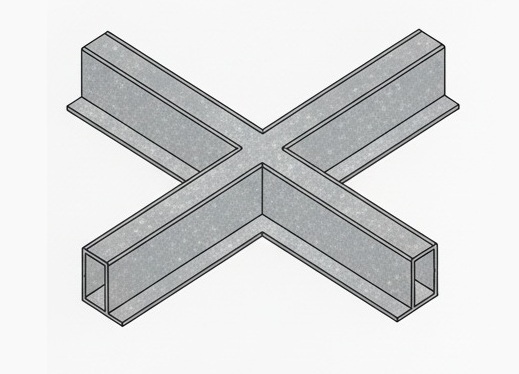

Horizontal Cross
Standard Dimensions
Width (W): 100, 150, 200, 300, 450, 600mm
Length (L): 900, 950, 1100, 1250mm
Allows for four-way cable branching while maintaining tray integrity and galvanization protection.
For other dimensions please Contact Us.

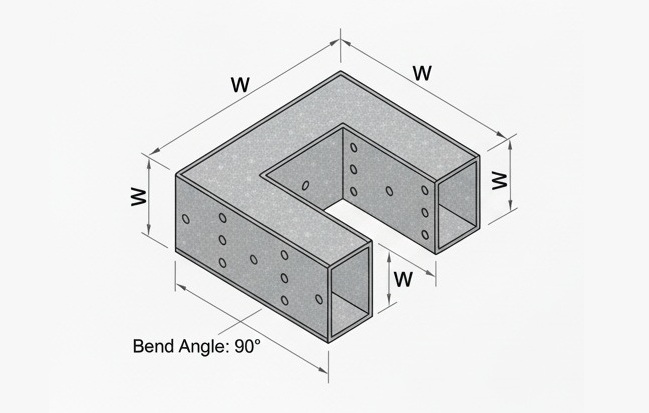

Horizontal Elbow
Standard Dimensions
Bend Angle: 90° (also available in 30°, 45°, 60°)
Width (W): 100, 150, 200, 300, 450, 600, 750mm
Manufactured for smooth directional changes without compromising structural strength.

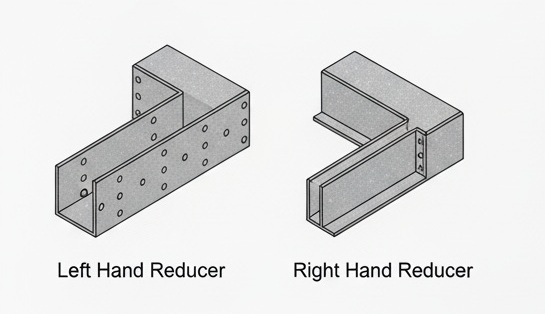

Reducer
Left Hand & Right Hand Reducer
Hot Dip Galvanized Reducers provide safe width transitions between trays of different sizes while maintaining high corrosion protection and structural integrity.

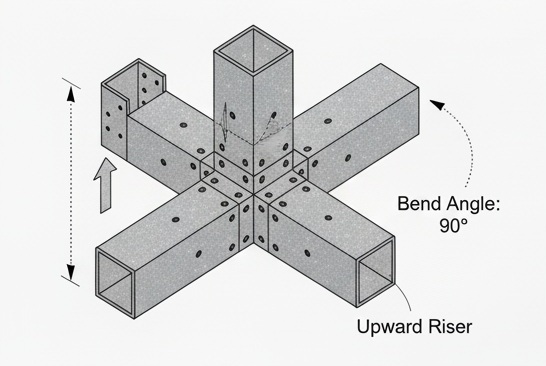

Vertical Risers
Standard Dimensions
Bend Angle: 90° (also available in 30°, 45°, 60°)
Used for vertical upward or downward cable movement in structures with harsh or
outdoor environments.
For other dimensions please Contact Us.
