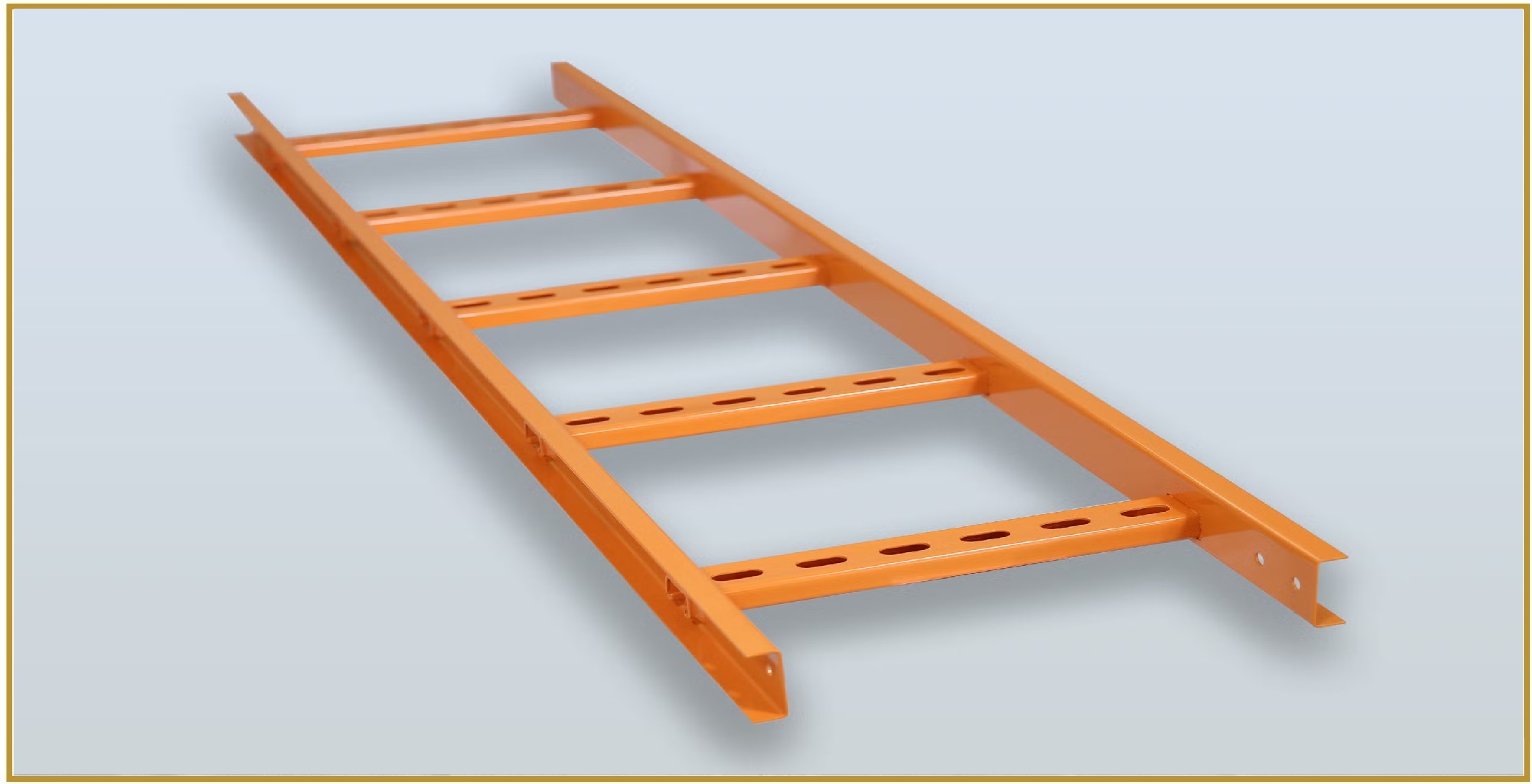

Powder Coated Ladder Cable Trays
Powder Coated Ladder Cable Trays are designed to provide both strength and superior surface protection. These trays are fabricated from high-quality mild steel sheets and coated with durable powder finishes to resist corrosion, wear, and environmental impact. They offer a clean, aesthetic look, making them ideal for commercial, industrial, and infrastructure applications.
Straight Section
Standard Dimensions
Length (L): 2,500mm & 3,000mm
Depth (D): 50mm, 75mm, 100mm, 150mm
Width (W): 100mm, 150mm, 200mm, 300mm, 450mm, 600mm, 750mm
Sheet Thickness: 1.2mm, 1.6mm, 2.0mm
Load Capacity: Light, Medium, and Heavy Duty
Material & Finish
Material: Mild Steel (M.S.) or Pre-Galvanized Sheets
Finish: Electrostatic Powder Coated (custom color options
available)
Color Options: Light Grey, Siemens Grey, Blue, Red, or as per
client request
Custom designs and thicknesses are available upon request for specific project requirements.
Horizontal Tee
Standard Dimensions
Width (W): 100, 150, 200, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250mm
For other dimensions please Contact Us.

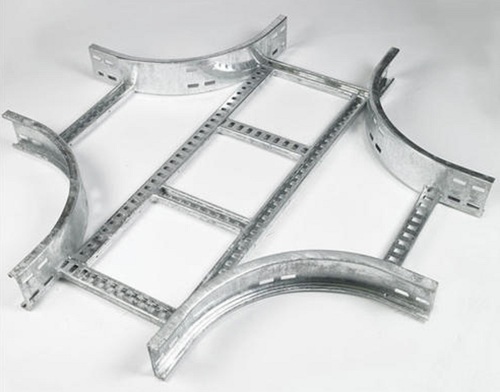

Horizontal Cross
Standard Dimensions
Width (W): 100, 150, 200, 300, 450, 600mm
Length (L): 900, 950, 1100, 1250mm
For other dimensions please Contact Us.

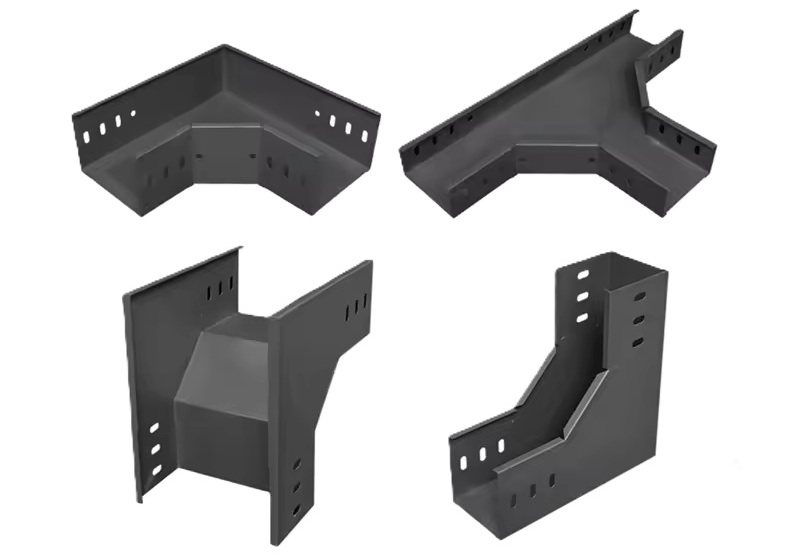

Horizontal Elbow
Standard Dimensions
Bend Angle: 90° (also available in 30°, 45°, 60°)
Width (W): 100, 150, 200, 300, 450, 600, 750mm
For other dimensions please Contact Us.

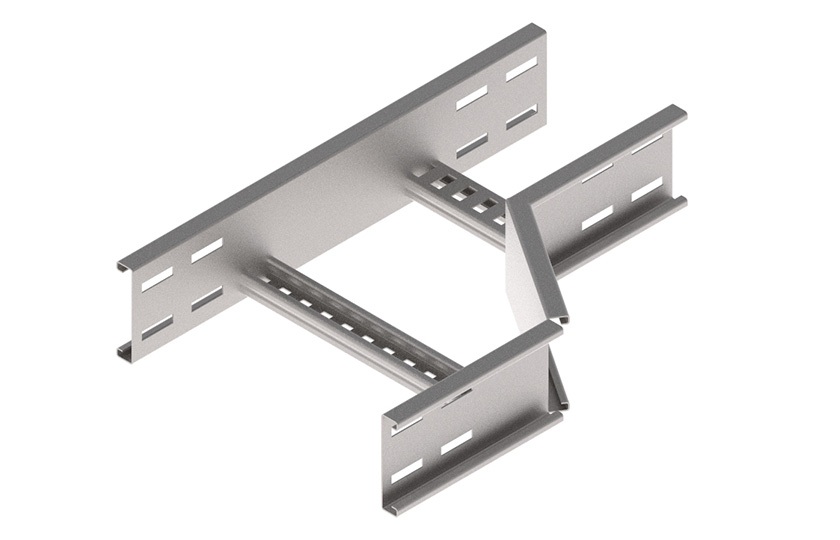

Reducer
Left Hand & Right Hand Reducer
Powder Coated Cable Tray Reducers provide smooth transitions between trays of different widths, maintaining alignment and durability of the cable support system.

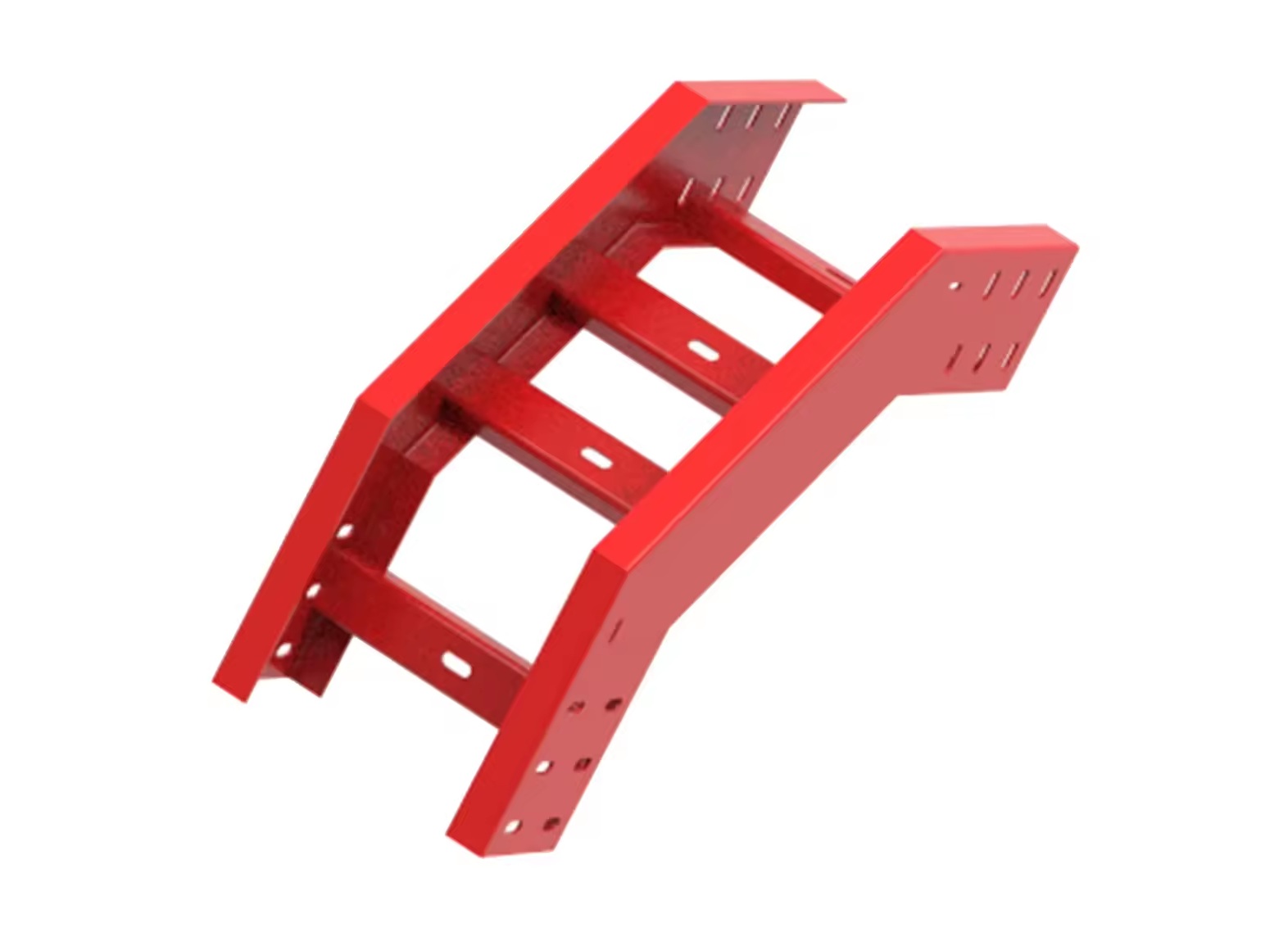

Vertical Risers
Standard Dimensions
Bend Angle: 90° (also available in 30°, 45°, 60°)
Designed for upward and downward vertical cable transitions with aesthetic
powder coating protection.
For other dimensions please Contact Us.
