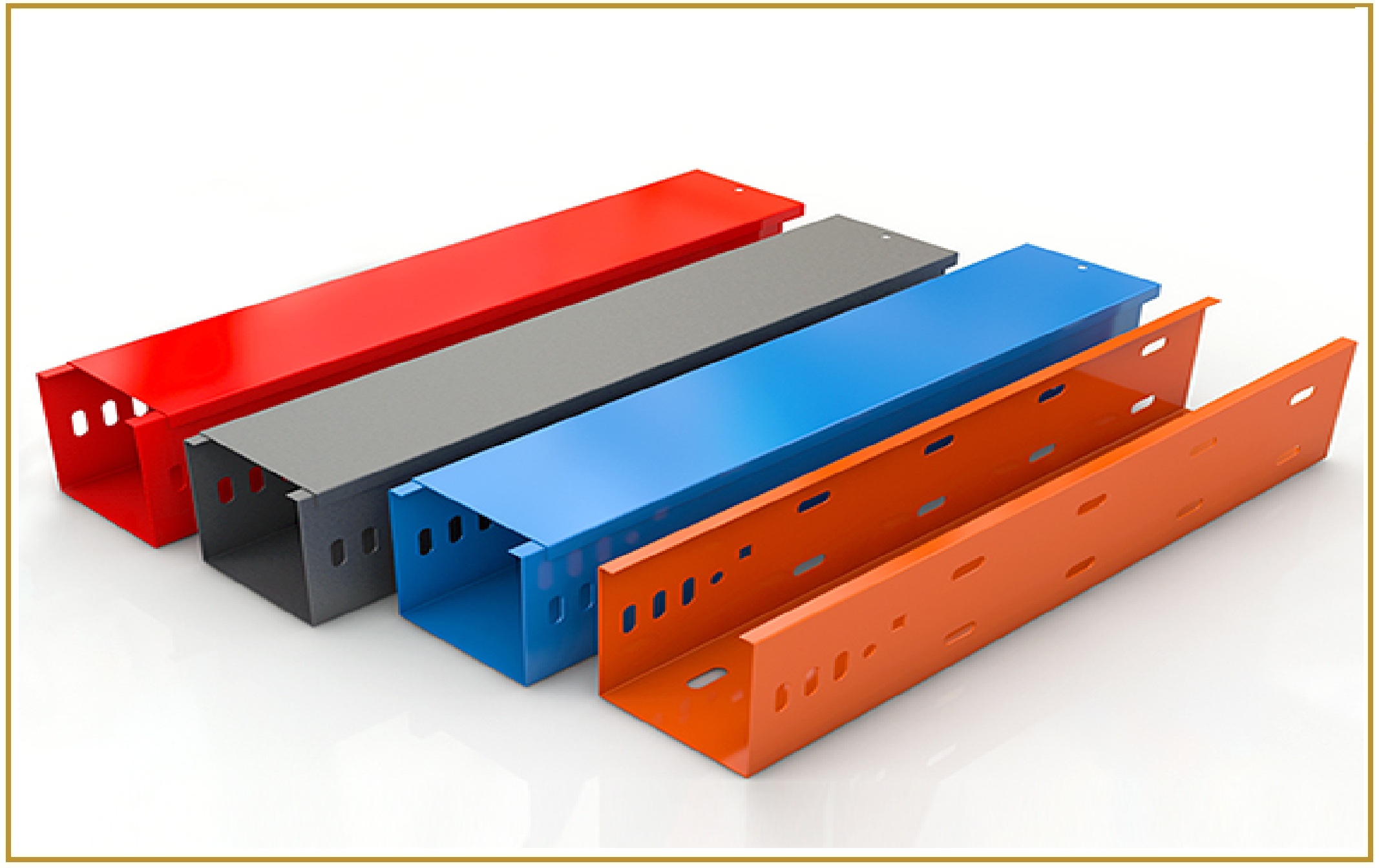

Raceways and Trunking Cable Tray
Straight sections of solid bottom cable trays are constructed from a single sheet of metal providing excellent protection from external damage. They are used primarily for instrumental control, communication, and other non-heat-producing cables.
Straight Section
Standard Dimensions
Length (L): 2,500mm & 3,000mm
Depth (D): 50mm, 75mm, 85mm, 100mm, 150mm
Width (W): 100mm, 150mm, 200mm, 300mm, 450mm, 600mm, 750mm
Sheet Metal Thickness:
1.2mm for light loads (LL)
1.5mm for medium loads (M)
2.0mm for heavy loads (H)
Material & Finish
Material: Prime quality G.I. & M.S. sheets.
Finish (after fabrication):
Electro powder coating (E)
Pre-galvanised (P)
Hot dip galvanized (H)
Designs other than those listed above can be manufactured to meet special requirements.

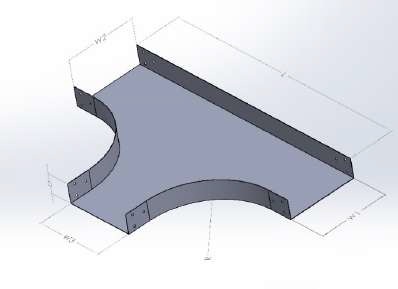

Horizontal Tee
Standard Dimensions
Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750, 900mm
Length (L): 900, 950, 1100, 1250, 1400, 1550, 1700mm
Breadth (B): 500, 550, 700, 850, 1000, 1150, 1300mm
For other dimensions please Contact Us.

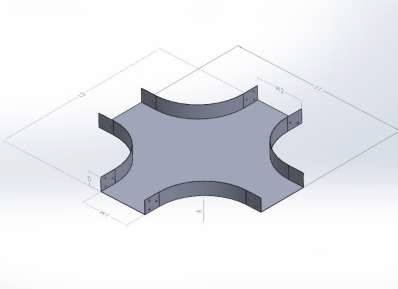

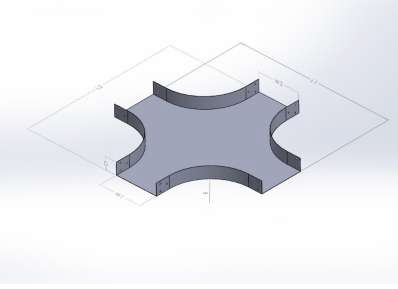

Horizontal Cross
Standard Dimensions
Radius (R): 300mm
Width (W): 100, 150, 300, 450, 600, 750mm
Length (L): 900, 950, 1100, 1250, 1400, 1550mm
For other dimensions please Contact Us.

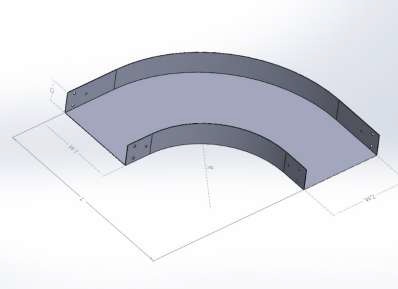

Horizontal Elbow
Standard Dimensions
Radius (R): 300mm
Bend Angle: 90° (30°, 45° & 60° also available)
Width (W): 100, 150, 300, 450, 600, 750, 900mm
Length (L): 500, 550, 700, 850, 1000, 1300, 1550mm
Breadth (B): 500, 550, 700, 850, 1000, 1150, 1300mm
For other dimensions please Contact Us.

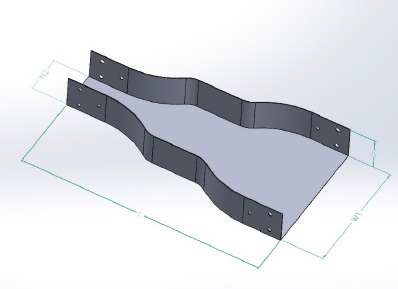

Reducer
Left Hand Reducer & Right Hand Reducer
BNY offers a complete range of perforated bottom reducers for joining any two sizes of straight sections. Please specify both starting and ending widths.
Inside & Outside Vertical Risers
Standard Dimensions
Bend Angle: 90°
For other dimensions please Contact
Us.
