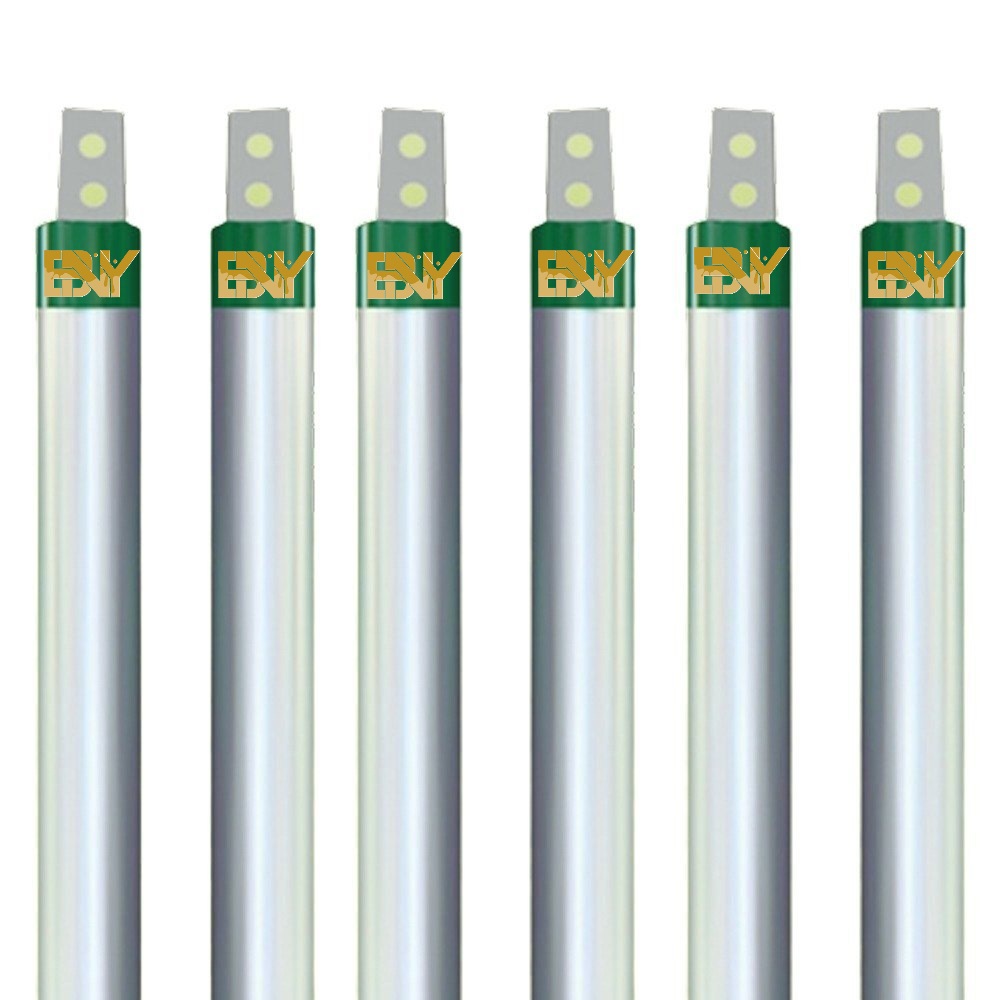

Fast Earthings manufactures Hot Dip Galvanized Filled Pipes with a Minimum Zinc coating of 70-80 microns (avg) specialised for Earthing Application. Anti-corrosive moisture absorbing minerals are filled and sealed inside hot dip galvanized pipes to eliminate inside aut corrosion. Normal Gi Pipe available in market are intended for structural and sanitary applications and is not specialised for Earthing Application.

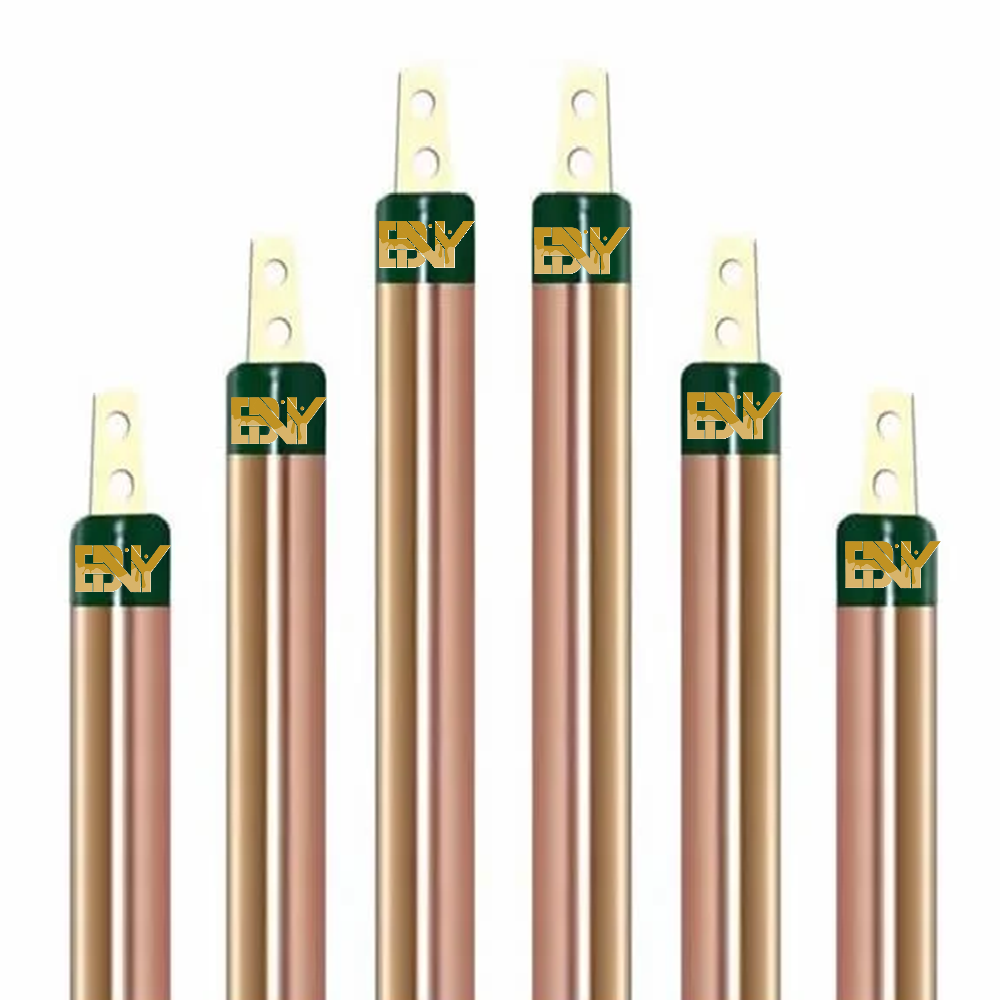

Copper Bonded Pipe is extensively used in highly corrosive soil environment where other Earth Electrodes made of Copper, Hot Dip Galvanized pipe cannot be used due to economical constraints and corrosive nature respectively. Anti-corrosive moisture absorbing minerals is filled and sealed inside copper bonded pipe to eliminate inside out corrosion.

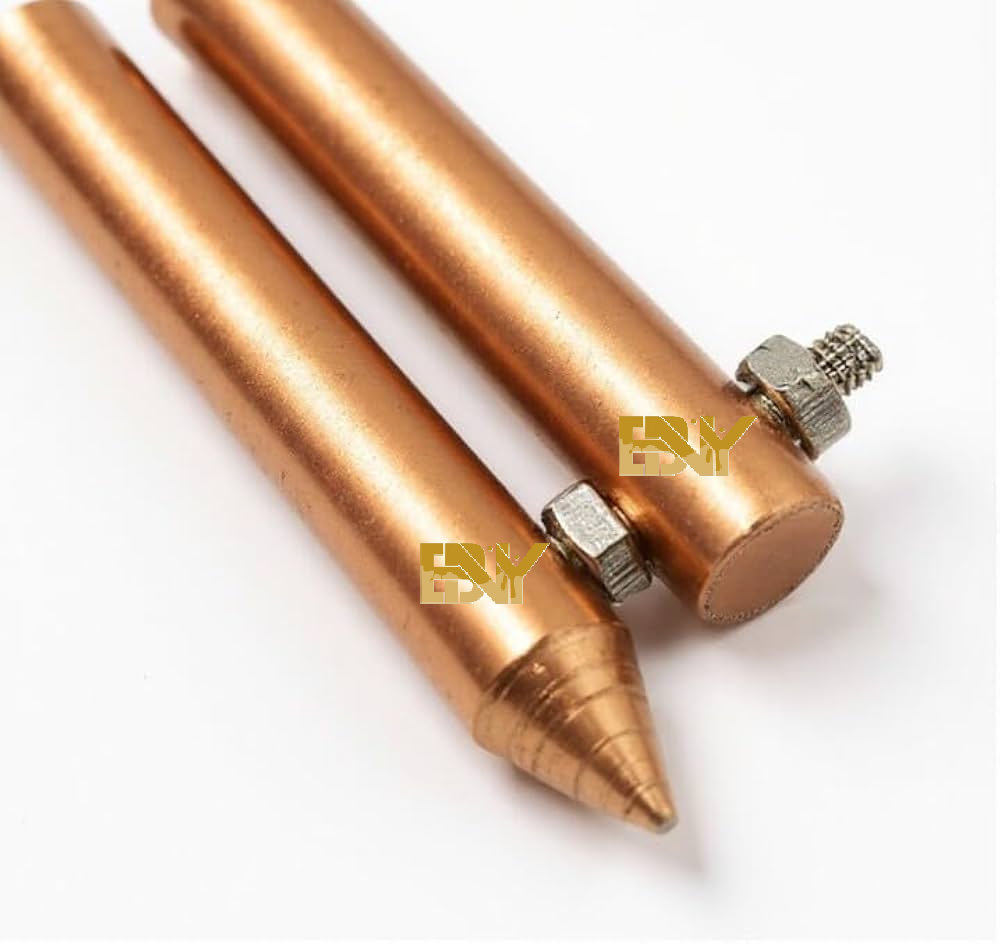

99.95% pure Electrolytic Grade Copper is Molecularly Bonded to Nickel-Sealed Low Carbon Steel Core having High Tensile Strength. Nickel Sealing is done for good Adhesion and Copper Coating will not crack when bent or driven. No part of steel is Exposed since Copper Coating is done after all Fabrication. The standard copper coating thickness is 250/100 microns.

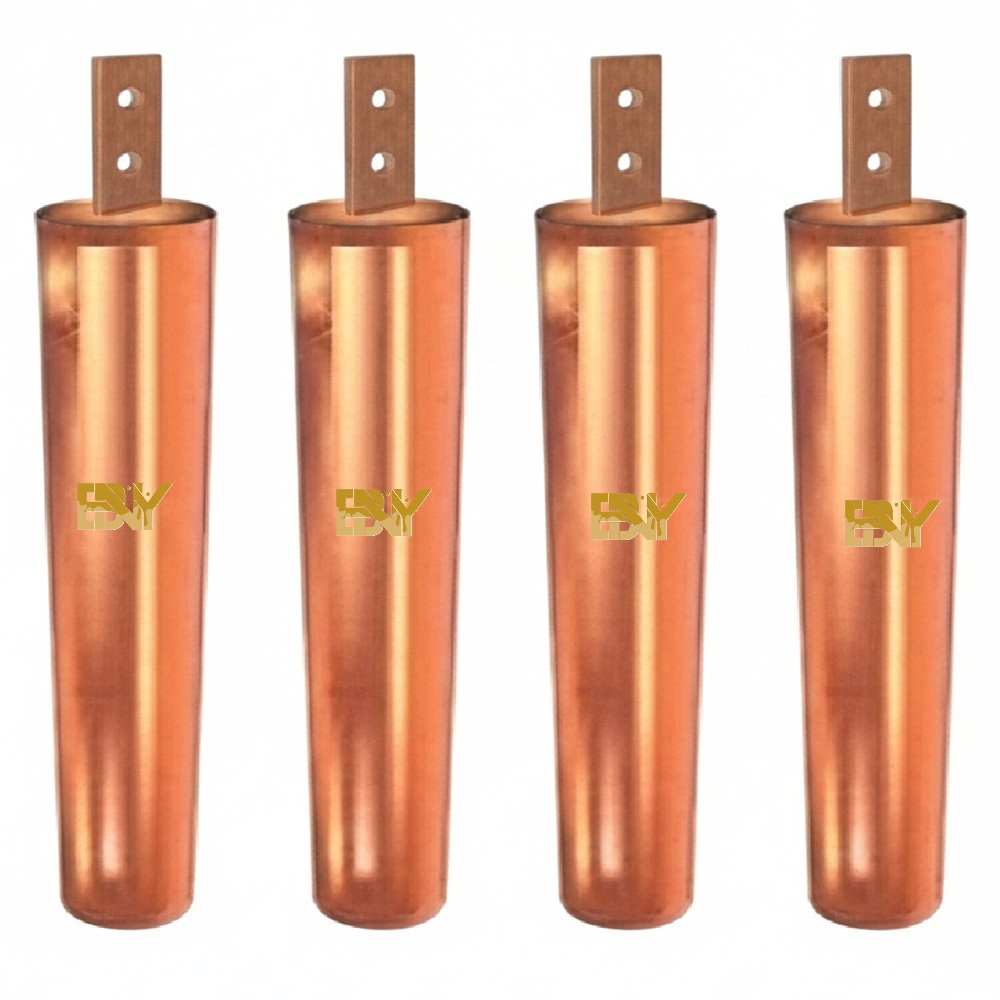

Pure Copper Earthing Electrode is made of Electrolytic Copper that is 99.9% pure. It has an excellent corrosion resistance. It is used when higher conductivity and corrosion resistance are required. This uses pressurized Crystalline Conductive Compound to ensure the highest conductivity and withstand any leakage current. They are useful for applications where soil conditions are very aggressive such as soil with high salt and moisture content

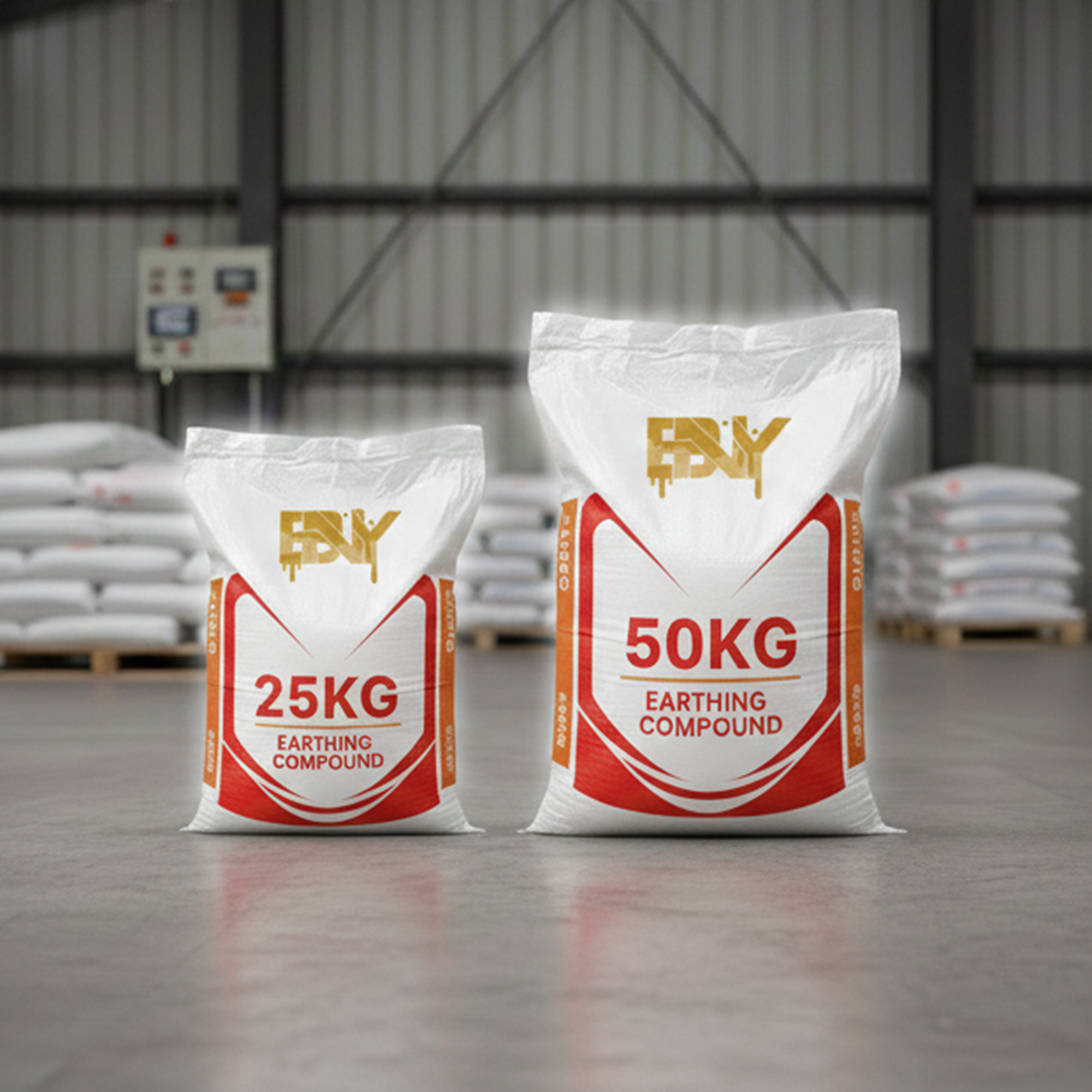

We have developed our unique back-fill-compound. Our unique back-fill-compound is a combination of natural earth minerals, which having the hygroscopic property, to retain the moisture for a long time. During installation with proper water pouring, our Advance BFC retains the moisture upto twenty times its dry volume as well as it creates a layer surrounding our electrode.

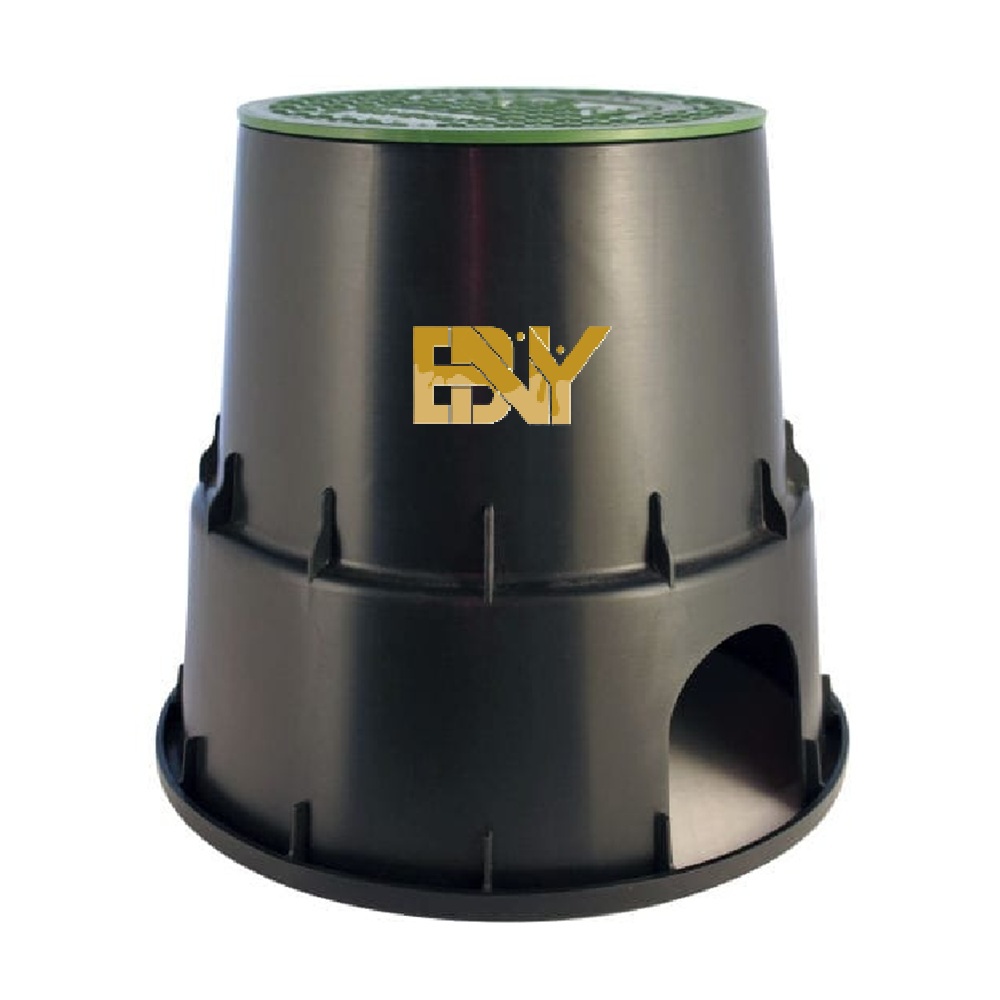

Earth Pit/Inspection Chambers are provided to safely enclose the Earthing System, for carrying out maintenance, Inspection and Testing Purpose. To avoid masonry work at site, Excel Earthings provides ready-made earth pit chambers with removable lid made of high-density UV Resistant Polypropylene/Poly Vinyl Chloride Confirming to IEC 62561-5.

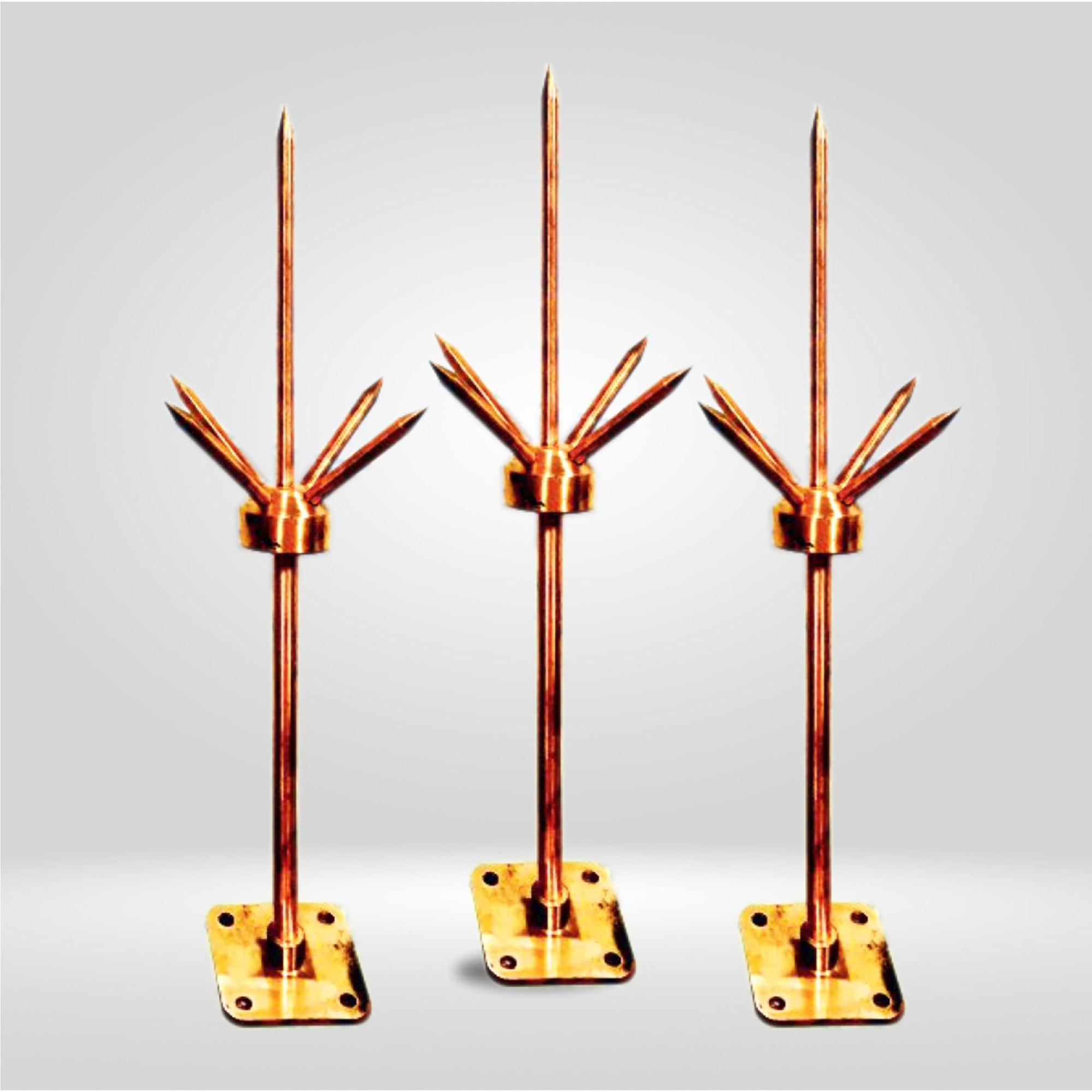

Vertical Air Terminal Rods, also known as Franklin Rods confirming to IS/IEC 62305-3 are designed to protect structures, exposed equipment (Solar PV System, Towers etc.) from Direct Lightning Strikes. They are made-up of Copper Bonded/Stainless Steel Solid Rods. For Better Contact with the Down/Interconnecting Conductors, Pressed Terminals are provided. It Comes with Nylon Insulated Base which provide proper insulation and Separation with the supporting structure.

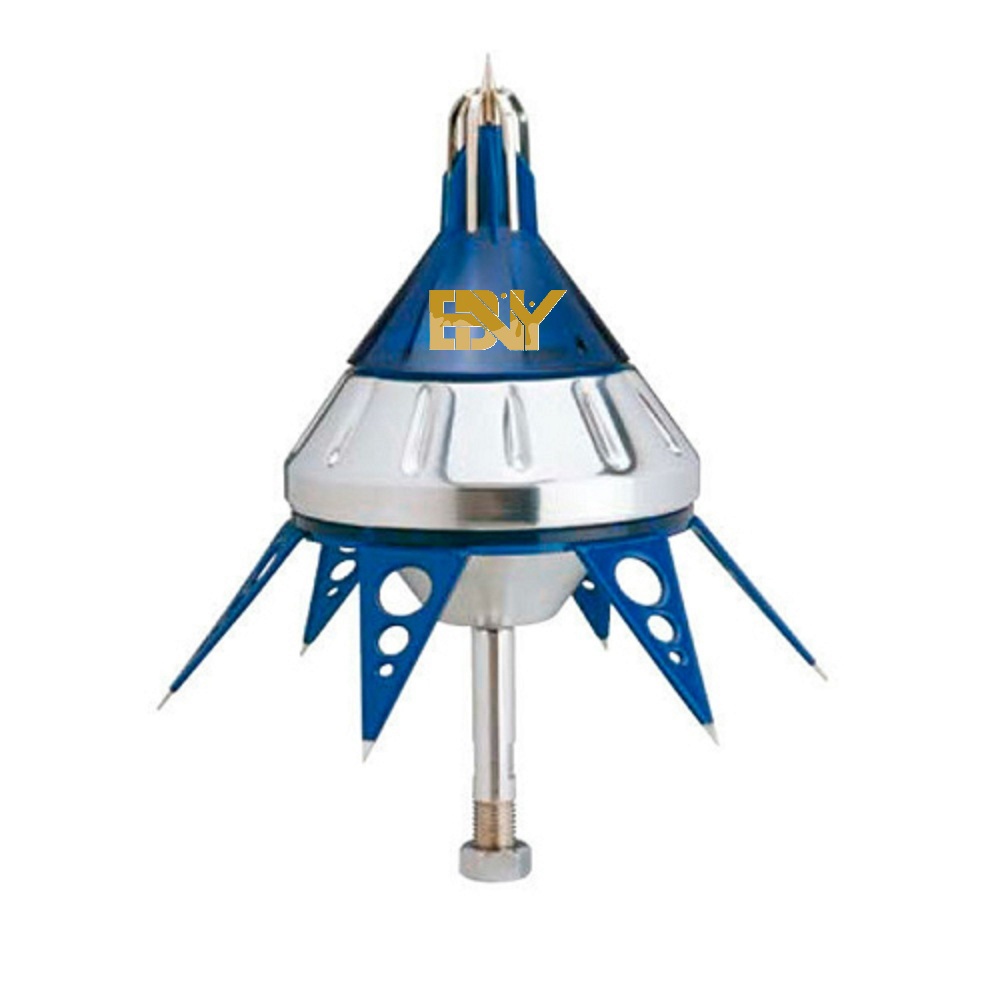

Early Streamer Emission (ESE) Lightning Arrester offers a safe and reliable system to protect your building or solar project from direct lightning strikes. The ESE Lightning Arrester, also known as Active Lightning Arrester, provides an enhanced Radius of Protection, reducing the number of Lightning Arresters and down conductors needed while still providing complete protection.

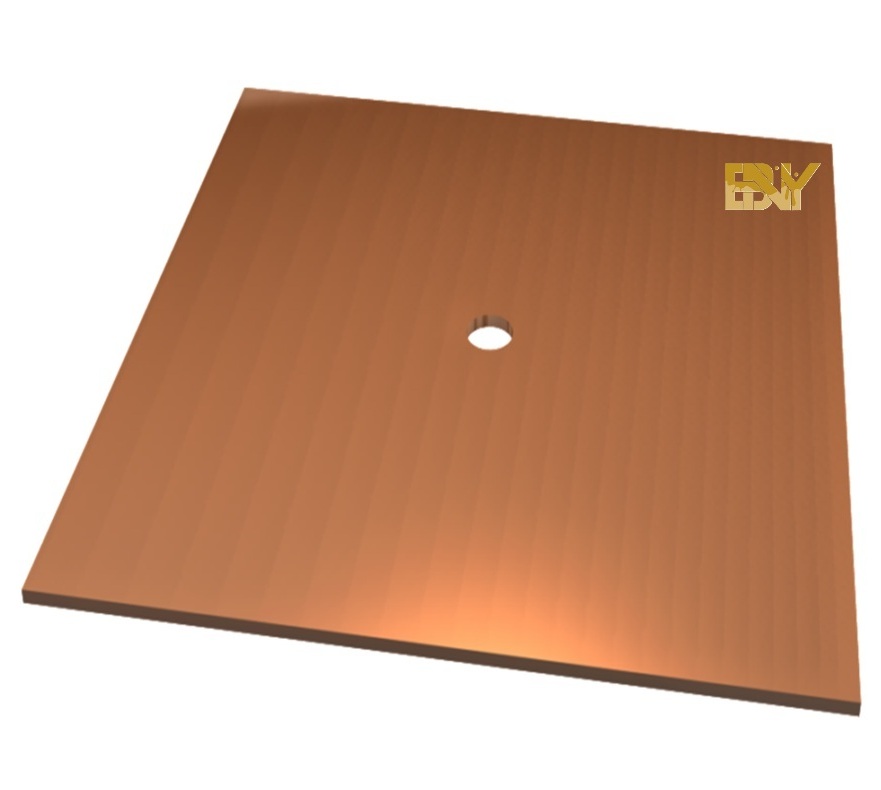

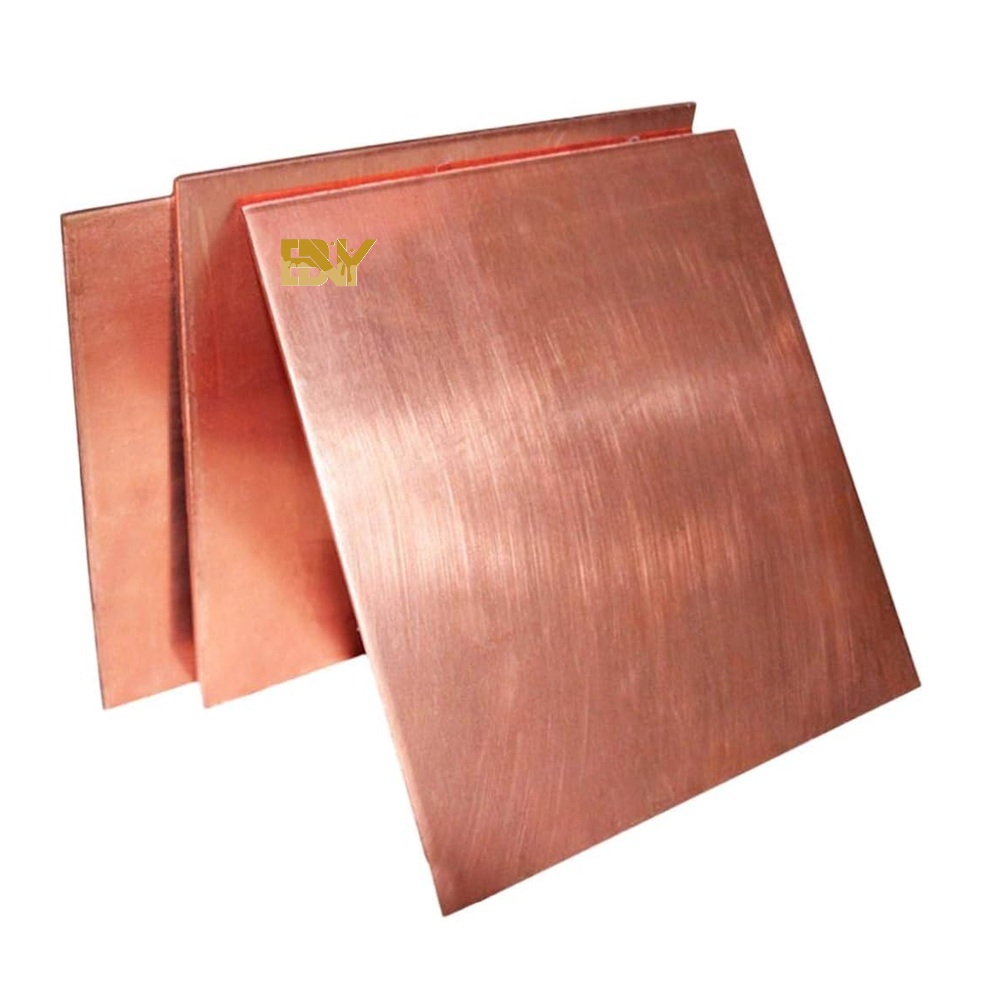

Copper Plate has high electrical and thermal conductivity and very high resistance to hydrogen embrittlement. We are recognised as a reliable Copper Plates (DHP & ETP) Supplier in India. Due to the outstanding quality and unrivalled performance, various industrial sectors place bulk orders for customised Copper Plates. Copper plates from ETP and DHP are available in various sizes and dimensions.

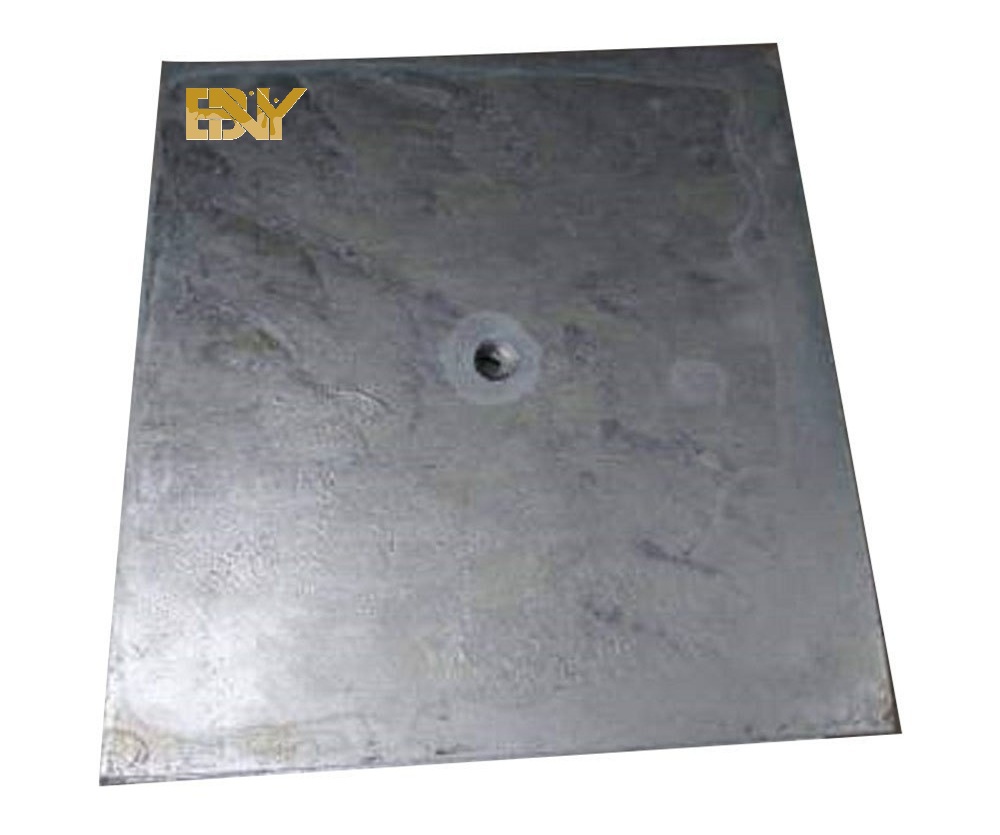

Hot Dip Galvanised Steel plates are manufactured in accordance with IS 3043:2018 with an average Zinc coating of 70–80 microns for Earthing Applications.
Copper Bonded Plates economically replace pure copper plates with advantages due to the combination of low carbon steel and copper. The Copper coating provides corrosion resistance as 99.9% Pure Electrolytic Grade Copper is molecularly bonded to superior quality steel.

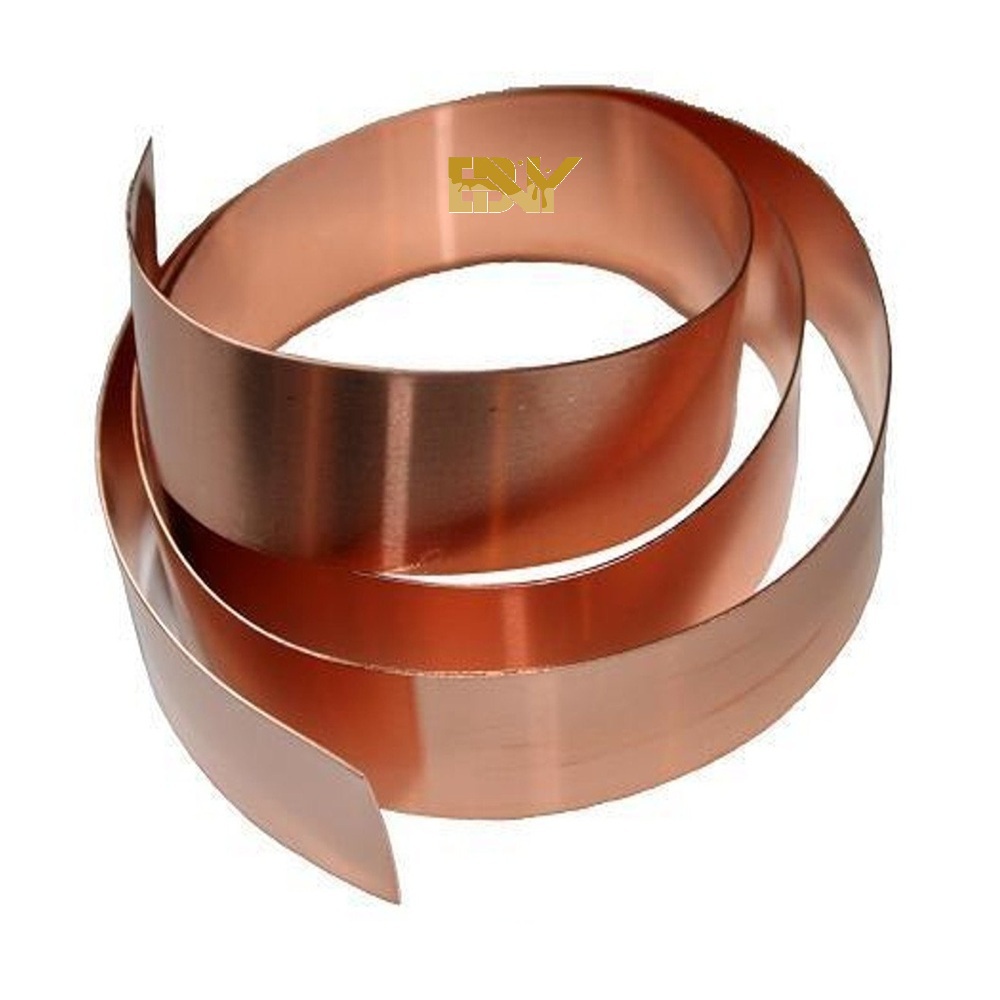

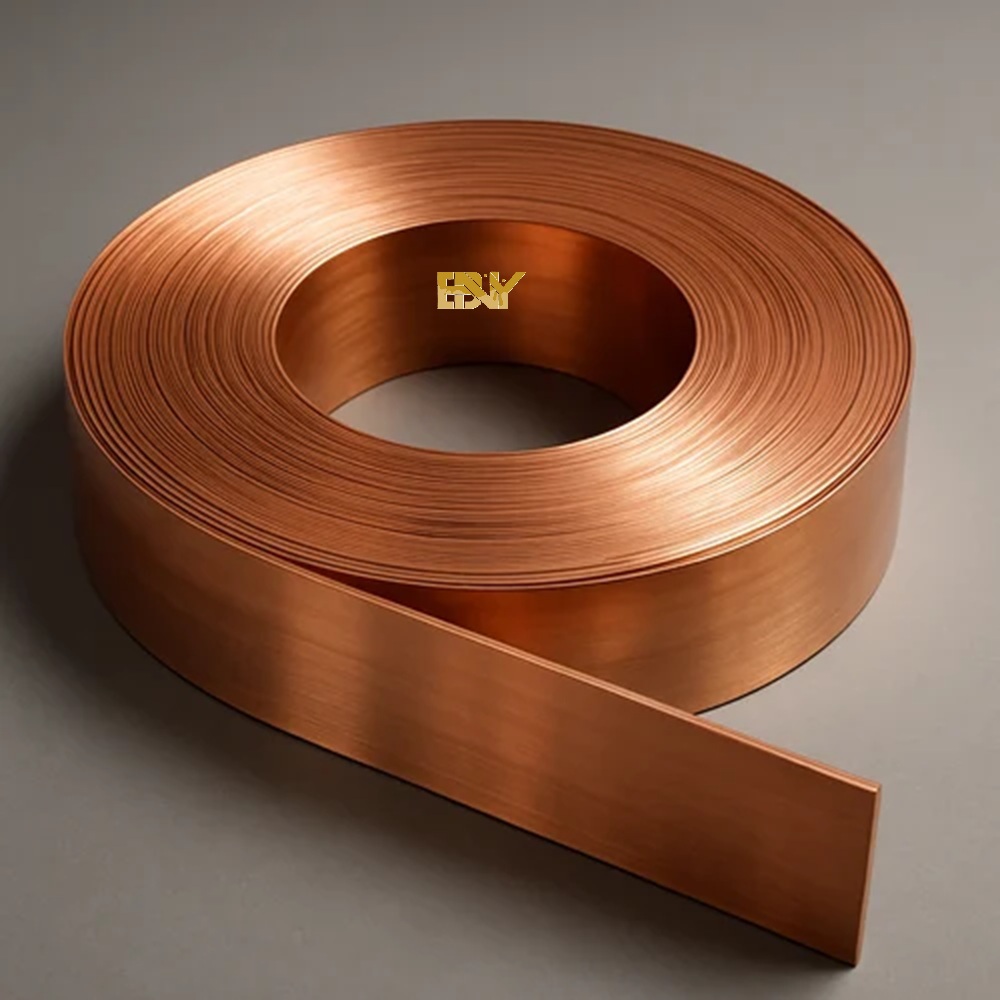

Copper earth strips are used as high-voltage electrodes for standard earthing arrangements on ground-mounted LV, MV & HV substations. The earth tape functions as a perimeter electrode installed around the foundation edges in direct soil contact and connected to switchgear earth bars.

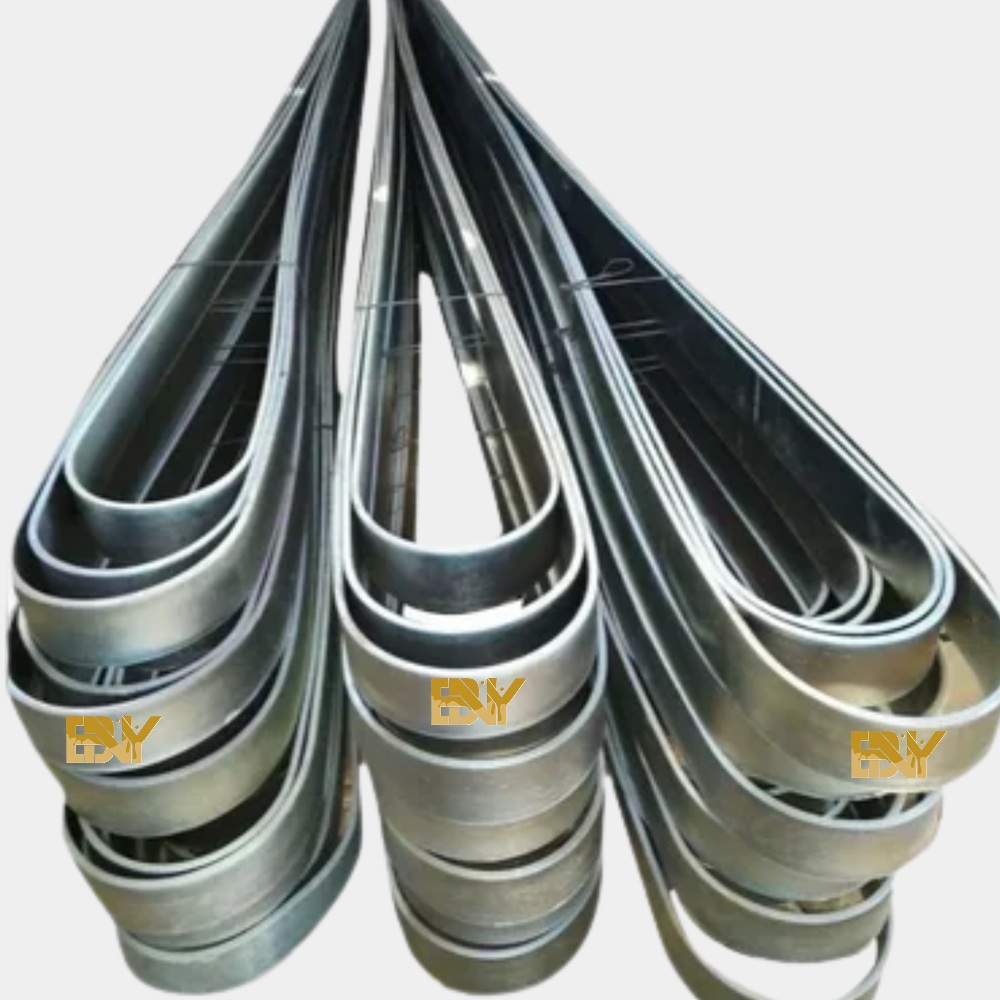

Galvanised Iron (GI) earthing strip is widely used for earthing purposes. It is highly corrosion resistant, increasing longevity and providing better protection from voltage transients. GI Steel Strips are manufactured in different dimensions with an average Zinc coating of 70–80 microns for Earthing & Lightning Protection Applications.
Copper Bonded Strips are used for Electrical Earthing and Lightning Protection Applications, such as Earthing Conductors, Lightning Down Conductors, and Lightning Mesh Formation. The steel–copper combination offers a cost-effective alternative to pure copper. Available with 100/250 micron coating.

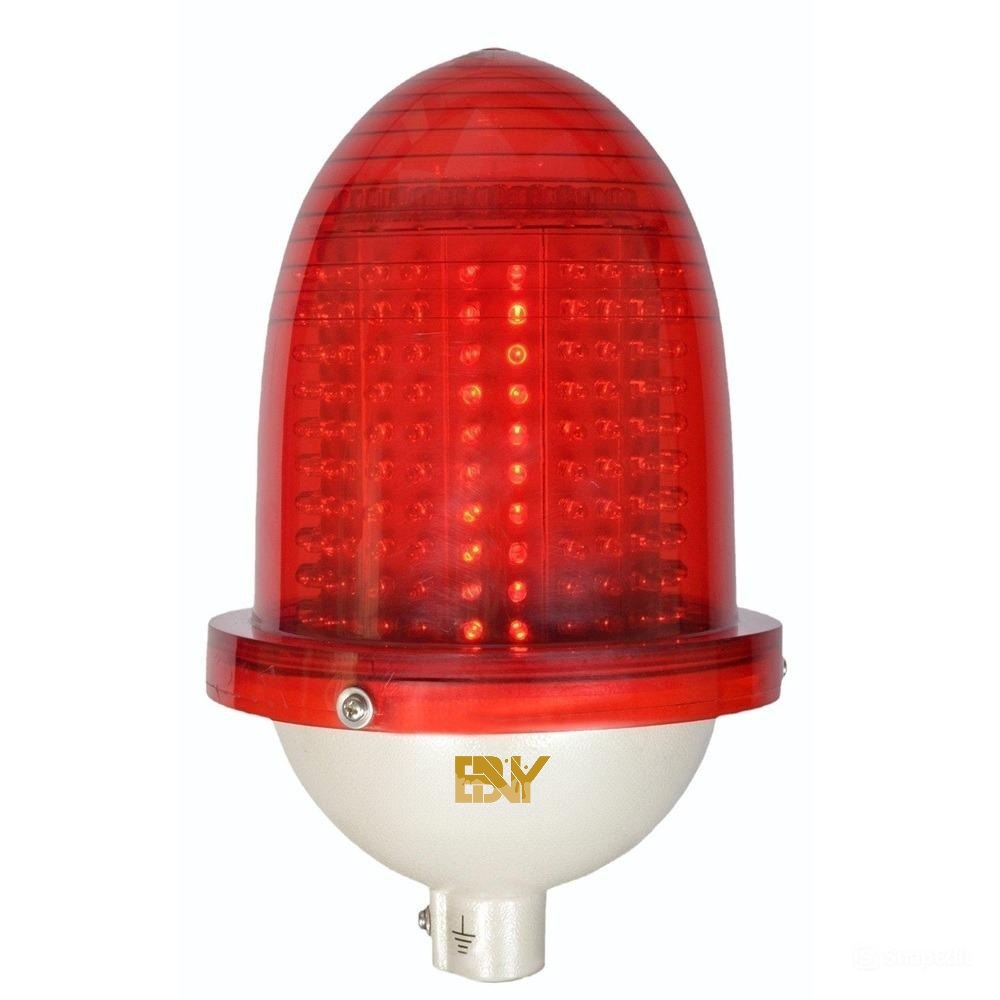

Aviation obstruction lighting enhances visibility of structures that may affect aircraft navigation. These are installed on buildings, towers and other high structures. High-intensity LED or strobe systems are used for maximum visibility and collision avoidance, as required by aviation regulations.
